   Type Designator: IRF9640SPBF
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pdⓘ - Maximum Power Dissipation: 125 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id|ⓘ - Maximum Drain Current: 11 A
   Tjⓘ - Maximum Junction Temperature: 150 °C
   Qgⓘ - Total Gate Charge: 44 nC
   trⓘ - Rise Time: 43 nS
   Cossⓘ - Output Capacitance: 370 pF
   Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.5 Ohm
   Package: TO-263

 IRF9640SPBF Transistor Equivalent Substitute - MOSFET Cross-Reference Search



IRF9640SPBF Datasheet (PDF)

 ..1. Size:999K  international rectifier
irf9640spbf.pdf

IRF9640SPBF IRF9640SPBF

PD - 95117AIRF9640SPbF Lead-Free06/09/05Document Number: 91087 www.vishay.com1IRF9640SPbFDocument Number: 91087 www.vishay.com2IRF9640SPbFDocument Number: 91087 www.vishay.com3IRF9640SPbFDocument Number: 91087 www.vishay.com4IRF9640SPbFDocument Number: 91087 www.vishay.com5IRF9640SPbFDocument Number: 91087 www.vishay.com6IRF9640SPbFPeak Diode

 ..2. Size:195K  vishay
irf9640spbf sihf9640l sihf9640s.pdf

IRF9640SPBF IRF9640SPBF

IRF9640S, SiHF9640S, IRF9640L, SiHF9640LVishay SiliconixPower MOSFETFEATURESPRODUCT SUMMARY Halogen-free According to IEC 61249-2-21VDS (V) - 200 Definition Surface MountRDS(on) ()VGS = - 10 V 0.50 Available in Tape and Reel Qg (Max.) (nC) 44 Dynamic dV/dt Rating Repetitive Avalanche RatedQgs (nC) 7.1 P-ChannelQgd (nC) 27 Fast Switching

 6.1. Size:170K  international rectifier
irf9640s.pdf

IRF9640SPBF IRF9640SPBF

 6.2. Size:169K  vishay
irf9640s sihf9640s irf9640l sihf9640l.pdf

IRF9640SPBF IRF9640SPBF

IRF9640S, SiHF9640S, IRF9640L, SiHF9640LVishay SiliconixPower MOSFETFEATURESPRODUCT SUMMARY Halogen-free According to IEC 61249-2-21VDS (V) - 200 Definition Surface MountRDS(on) ()VGS = - 10 V 0.50 Available in Tape and Reel Qg (Max.) (nC) 44 Dynamic dV/dt Rating Repetitive Avalanche RatedQgs (nC) 7.1 P-ChannelQgd (nC) 27 Fast Switching

 7.1. Size:170K  international rectifier
irf9640.pdf

IRF9640SPBF IRF9640SPBF

 7.2. Size:2131K  international rectifier
irf9640pbf.pdf

IRF9640SPBF IRF9640SPBF

PD - 94981IRF9640PbF Lead-Free02/04/04Document Number: 91086 www.vishay.com1IRF9640PbFDocument Number: 91086 www.vishay.com2IRF9640PbFDocument Number: 91086 www.vishay.com3IRF9640PbFDocument Number: 91086 www.vishay.com4IRF9640PbFDocument Number: 91086 www.vishay.com5IRF9640PbFDocument Number: 91086 www.vishay.com6IRF9640PbFTO-220AB Package O

 7.3. Size:103K  fairchild semi
irf9640 rf1s9640sm.pdf

IRF9640SPBF IRF9640SPBF

IRF9640, RF1S9640SMData Sheet January 200211A, 200V, 0.500 Ohm, P-Channel Power FeaturesMOSFETs 11A, 200VThese are P-Channel enhancement mode silicon-gate rDS(ON) = 0.500power field-effect transistors. They are advanced power Single Pulse Avalanche Energy RatedMOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown ava

 7.5. Size:519K  samsung

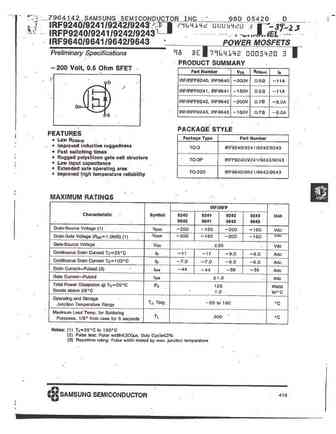

irfp9240-43 irf9240-43 irf9640-43.pdf
