SSM6G18NU Datasheet. Specs and Replacement

Type Designator: SSM6G18NU  📄📄

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V

|Id| ⓘ - Maximum Drain Current: 2 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

Cossⓘ - Output Capacitance: 40 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.112 Ohm

Package: 2-2Y1A

  📄📄 Copy

SSM6G18NU substitution

- MOSFET ⓘ Cross-Reference Search



SSM6G18NU datasheet

 ..1. Size:247K  toshiba
 ssm6g18nu.pdf pdf_icon

SSM6G18NU

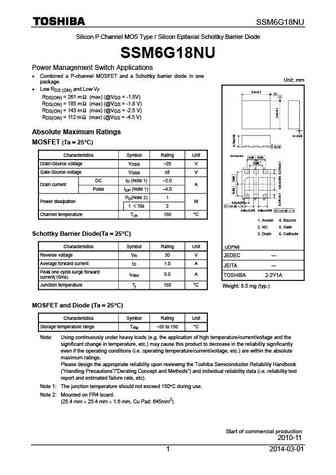

SSM6G18NU Silicon P Channel MOS Type / Silicon Epitaxial Schottky Barrier Diode SSM6G18NU Power Management Switch Applications Combined a P-channel MOSFET and a Schottky barrier diode in one Unit mm package. Low RDS (ON) and Low VF 2.0 0.1 B A RDS(ON) = 261 m (max) (@VGS = -1.5V) RDS(ON) = 185 m (max) (@VGS = -1.8 V) RDS(ON) = 143 m (max) (@VGS = -2.5 V) ... See More ⇒
