CS4905S Specs and Replacement

Type Designator: CS4905S

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 3.8 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 55 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 20 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm

Package: SMD-1

CS4905S substitution

- MOSFET ⓘ Cross-Reference Search



CS4905S datasheet

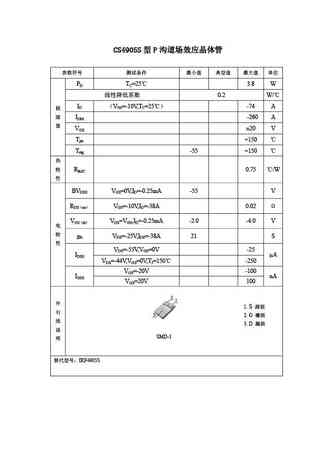

 ..1. Size:59K  china
 cs4905s.pdf pdf_icon

CS4905S

CS4905S P PD TC=25 3.8 W 0.2 W/ ID VGS=-10V,TC=25 -74 A IDM -260 A VGS 20 V Tjm +150 Tstg -55 +150 RthJC 0.75 /W BVDSS VGS=0V,ID=-0.25mA -55 V RDS on VGS=-10V,ID=-38A 0.02 VGS th VDS=VGS,ID=-0.25mA -2... See More ⇒
