SFH154 Datasheet. Specs and Replacement

Type Designator: SFH154

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 204 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 150 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 34 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 25 nS

Cossⓘ - Output Capacitance: 380 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.075 Ohm

Package: TO3P

SFH154 substitution

- MOSFET ⓘ Cross-Reference Search



SFH154 datasheet

 ..1. Size:228K  fairchild semi
 sfh154.pdf pdf_icon

SFH154

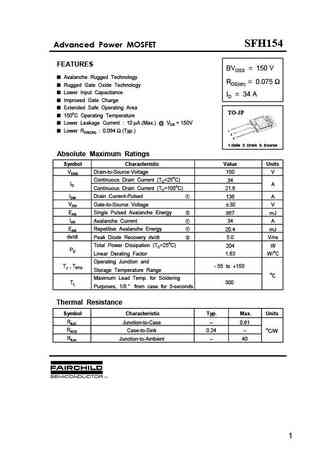

SFH154 Advanced Power MOSFET FEATURES BVDSS = 150 V Avalanche Rugged Technology RDS(on) = 0.075 Rugged Gate Oxide Technology Lower Input Capacitance ID = 34 A Improved Gate Charge Extended Safe Operating Area TO-3P 150oC Operating Temperature Lower Leakage Current 10 A(Max.) @ VDS = 150V 1 Lower RDS(ON) 0.064 (Typ.) 2 3 1.Gate 2. Drain 3. Source Absolut... See More ⇒
