KIA3415 Datasheet. Specs and Replacement

Type Designator: KIA3415

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.4 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V

|Id| ⓘ - Maximum Drain Current: 4 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 0.8 V

Qg ⓘ - Total Gate Charge: 17.2 nC

tr ⓘ - Rise Time: 17 nS

Cossⓘ - Output Capacitance: 205 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.045 Ohm

Package: SOT23

KIA3415 substitution

- MOSFET ⓘ Cross-Reference Search



KIA3415 datasheet

 ..1. Size:110K  kia
 kia3415.pdf pdf_icon

KIA3415

-4.0A -20V 3415 P-CHANNELMOSFET KIA KIA KIA SEMICONDUCTORS SEMICONDUCTORS SEMICONDUCTORS 1.Description The KIA3415 uses advanced trench technology to provide excellent R ,lowgate charge DS(on) and operation with gate voltages as lowas 1.8V.This device is suitable for use as a load switch or in PWM applications.Standard Product KIA3415 is Pb-free(meets ROHS & Sony 259 specificatio... See More ⇒

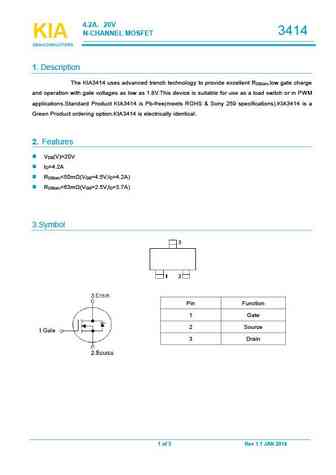

 8.1. Size:107K  kia
 kia3414.pdf pdf_icon

KIA3415

4.2A 20V 3414 N-CHANNELMOSFET KIA KIA KIA SEMICONDUCTORS SEMICONDUCTORS SEMICONDUCTORS 1.Description The KIA3414 uses advanced trench technology to provide excellent R ,lowgate charge DS(on) and operation with gate voltages as lowas 1.8V.This device is suitable for use as a load switch or in PWM applications.Standard Product KIA3414 is Pb-free(meets ROHS & Sony 259 specifications... See More ⇒

 9.1. Size:103K  kia
 kia3407.pdf pdf_icon

KIA3415

-4.1A -30V 3407 P-CHANNELMOSFET KIA KIA KIA SEMICONDUCTORS SEMICONDUCTORS SEMICONDUCTORS 1.Description The KIA3407 uses advanced trench technology to provide excellent R ,low gate DS(on) charge.This device is suitable for use as a load switch or in PWMapplications.Standard Product KIA3407 is Pb-free(meets ROHS&Sony 259 specifications).KIA3407 is a Green Product ordering option. ... See More ⇒

 9.2. Size:107K  kia
 kia3401.pdf pdf_icon

KIA3415

-4.0A -30V 3401 P-CHANNELMOSFET KIA KIA KIA SEMICONDUCTORS SEMICONDUCTORS SEMICONDUCTORS 1.Description The KIA3401 uses advanced trench technology to provide excellent R ,lowgate charge DS(on) and operation with gate voltages as lowas 2.5V.This device is suitable for use as a load switch or in PWM applications.Standard Product KIA3401 is Pb-free(meets ROHS & Sony 259 specificatio... See More ⇒

SHOW MORE

Detailed specifications: KIA3308A-252, KIA3308A-263, KIA3308A-247, KIA3400, KIA3401, KIA3402, KIA3407, KIA3414, IRFP260, KIA3510A-220, KIA3510A-252, KIA3510A-263, KIA4603A, KIA4706A, KIA4750S-252, KIA4750S-220, KIA4N60H-251
