12N65KG-TA3-T Specs and Replacement

Type Designator: 12N65KG-TA3-T

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 225 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 12 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 125 nS

Cossⓘ - Output Capacitance: 175 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.75 Ohm

Package: TO-220

12N65KG-TA3-T substitution

- MOSFET ⓘ Cross-Reference Search



12N65KG-TA3-T datasheet

 ..1. Size:298K  utc
 12n65kl-ta3-t 12n65kg-ta3-t 12n65kl-tf1-t 12n65kg-tf1-t 12n65kl-tf2-t 12n65kg-tf2-t 12n65kl-tf3-t 12n65kg-tf3-t 12n65kl-tq2-t 12n65kg-tq2-t 12n65kl-tq2-r 12n65kg-tq2-r.pdf pdf_icon

12N65KG-TA3-T

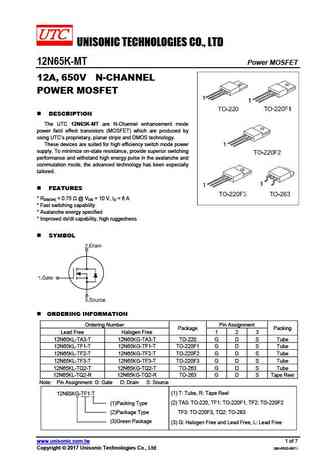

UNISONIC TECHNOLOGIES CO., LTD 12N65K-MT Power MOSFET 12A, 650V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 12N65K-MT are N-Channel enhancement mode power field effect transistors (MOSFET) which are produced by using UTC s proprietary, planar stripe and DMOS technology. These devices are suited for high efficiency switch mode power supply. To minimize on-state resistance, ... See More ⇒

 5.1. Size:298K  1
 12n65kl-t 12n65kg-t.pdf pdf_icon

12N65KG-TA3-T

UNISONIC TECHNOLOGIES CO., LTD 12N65K-MT Power MOSFET 12A, 650V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 12N65K-MT are N-Channel enhancement mode power field effect transistors (MOSFET) which are produced by using UTC s proprietary, planar stripe and DMOS technology. These devices are suited for high efficiency switch mode power supply. To minimize on-state resistance, ... See More ⇒

 8.1. Size:394K  silan
 svf12n65f svf12n65k svf12n65s svf12n65str.pdf pdf_icon

12N65KG-TA3-T

... See More ⇒

 8.2. Size:218K  inchange semiconductor
 12n65kl-tf1-t.pdf pdf_icon

12N65KG-TA3-T

isc N-Channel MOSFET Transistor 12N65KL-TF1-T FEATURES Static Drain-Source On-Resistance R ... See More ⇒
