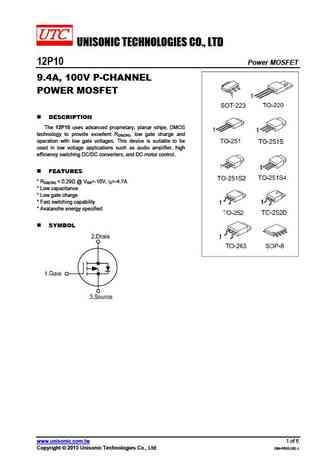

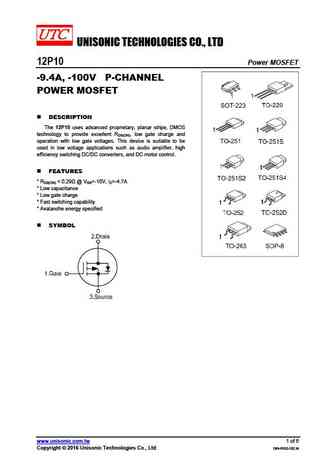

12P10G-TQ2-T MOSFET. Datasheet pdf. Equivalent

   Type Designator: 12P10G-TQ2-T
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pdⓘ - Maximum Power Dissipation: 73 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id|ⓘ - Maximum Drain Current: 9.4 A
   Tjⓘ - Maximum Junction Temperature: 150 °C
   Qgⓘ - Total Gate Charge: 21 nC
   trⓘ - Rise Time: 64 nS
   Cossⓘ - Output Capacitance: 115 pF
   Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.29 Ohm
   Package: TO-263

12P10G-TQ2-T Transistor Equivalent Substitute - MOSFET Cross-Reference Search
