1N60G-T92-K Specs and Replacement

Type Designator: 1N60G-T92-K

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 12.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 1 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 15 nS

Cossⓘ - Output Capacitance: 17.5 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 15 Ohm

Package: TO-92

1N60G-T92-K substitution

- MOSFET ⓘ Cross-Reference Search



1N60G-T92-K datasheet

 ..1. Size:361K  utc
 1n60l-t92-b 1n60g-t92-b 1n60l-t92-k 1n60g-t92-k 1n60l-tms-t 1n60g-tms-t 1n60l-t60-k 1n60g-t60-k.pdf pdf_icon

1N60G-T92-K

UNISONIC TECHNOLOGIES CO., LTD 1N60 Power MOSFET 1.2A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 1N60 is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in ... See More ⇒

 ..2. Size:479K  utc
 1n60l-aa3-r 1n60g-aa3-r 1n60l-ab3-r 1n60g-ab3-r 1n60l-tm3-t 1n60g-tm3-t 1n60l-tn3-r 1n60g-tn3-r 1n60l-t60-k 1n60g-t60-k 1n60l-t92-b 1n60g-t92-b 1n60l-t92-k 1n60g-t92-k.pdf pdf_icon

1N60G-T92-K

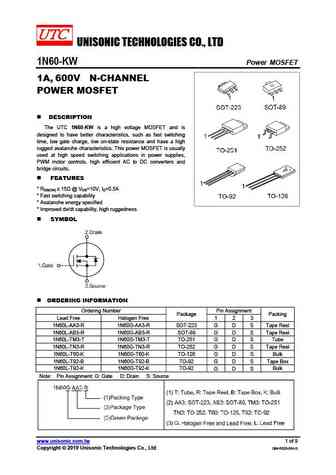

UNISONIC TECHNOLOGIES CO., LTD 1N60-KW Power MOSFET 1A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 1N60-KW is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications... See More ⇒

 ..3. Size:453K  utc
 1n60l-aa3-r 1n60g-aa3-r 1n60l-ta3-t 1n60g-ta3-t 1n60l-tf2-t 1n60g-tf2-t 1n60l-tf3-t 1n60g-tf3-t 1n60l-tm3-t 1n60g-tm3-t 1n60l-tms-t 1n60g-tms-t 1n60g-t92-k.pdf pdf_icon

1N60G-T92-K

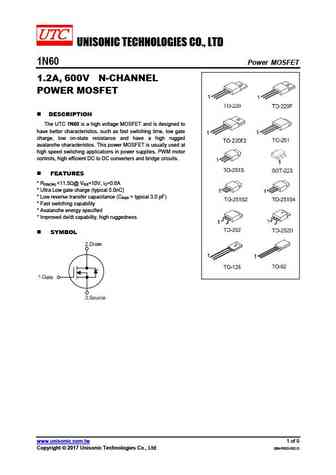

UNISONIC TECHNOLOGIES CO., LTD 1N60 Power MOSFET 1.2A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 1N60 is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in ... See More ⇒

 4.1. Size:453K  utc
 1n60l-tms2-t 1n60g-tms2-t 1n60l-tms4-t 1n60g-tms4-t 1n60l-tn3-r 1n60g-tn3-r 1n60l-tnd-r 1n60g-tnd-r 1n60l-t60-k 1n60g-t60-k 1n60l-t92-b 1n60g-t92-b 1n60l-t92-k.pdf pdf_icon

1N60G-T92-K

UNISONIC TECHNOLOGIES CO., LTD 1N60 Power MOSFET 1.2A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 1N60 is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in ... See More ⇒

SHOW MORE

Detailed specifications: 1N60G-AB3-R, 1N60L-TN3-R, 1N60G-TN3-R, 1N60L-T60-K, 1N60G-T60-K, 1N60L-T92-B, 1N60G-T92-B, 1N60L-T92-K, IRF1405, 1N60L-TMS-T, 1N60G-TMS-T, 1N60L-TMS2-T, 1N60G-TMS2-T, 1N60L-TMS4-T, 1N60G-TMS4-T, 1N60L-TND-R, 1N60G-TND-R
