AOT380A60L PDF and Equivalents Search



AOT380A60L Specs and Replacement


   Type Designator: AOT380A60L
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 131 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 11 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 13 nS
   Cossⓘ - Output Capacitance: 29 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.38 Ohm
   Package: TO220


 AOT380A60L substitution

   - MOSFET ⓘ Cross-Reference Search



AOT380A60L datasheet

 ..1. Size:647K  aosemi
 aot380a60l.pdf pdf_icon

AOT380A60L

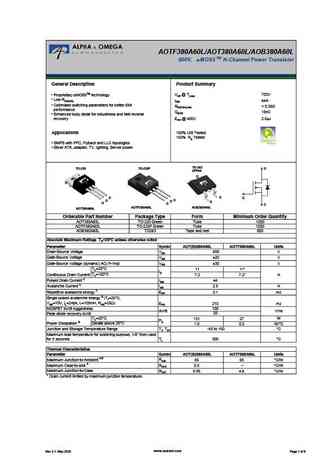

AOTF380A60L/AOT380A60L/AOB380A60L TM 600V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 44A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 ..2. Size:647K  aosemi
 aotf380a60l aot380a60l aob380a60l.pdf pdf_icon

AOT380A60L

AOTF380A60L/AOT380A60L/AOB380A60L TM 600V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 44A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 5.1. Size:649K  aosemi
 aot380a60cl.pdf pdf_icon

AOT380A60L

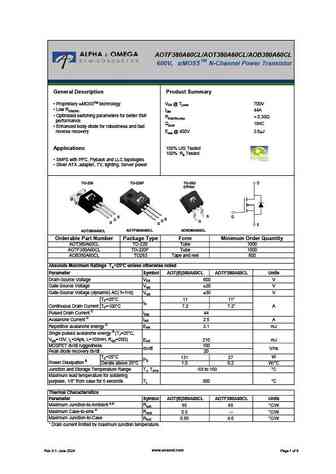

AOTF380A60CL/AOT380A60CL/AOB380A60CL TM 600V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 44A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 5.2. Size:649K  aosemi
 aotf380a60cl aot380a60cl aob380a60cl.pdf pdf_icon

AOT380A60L

AOTF380A60CL/AOT380A60CL/AOB380A60CL TM 600V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 44A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
