AOK065A60FD Specs and Replacement

Type Designator: AOK065A60FD

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 446 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 50 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 86 nS

Cossⓘ - Output Capacitance: 150 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.065 Ohm

Package: TO247

AOK065A60FD substitution

- MOSFET ⓘ Cross-Reference Search



AOK065A60FD datasheet

 ..1. Size:470K  aosemi
 aok065a60fd.pdf pdf_icon

AOK065A60FD

AOK065A60FD TM 600V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 200A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 5.1. Size:470K  aosemi
 aok065a60.pdf pdf_icon

AOK065A60FD

AOK065A60 TM 600V, aMOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary MOS5TM technology Low RDS(ON) IDM 168A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 8.1. Size:1136K  aosemi
 aok065v65x2.pdf pdf_icon

AOK065A60FD

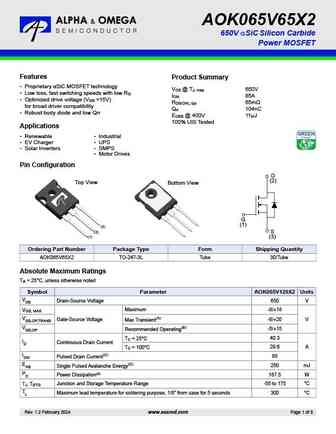

AOK065V65X2 650V SiC Silicon Carbide Power MOSFET Features Product Summary Proprietary SiC MOSFET technology V @ T 650V DS J, max Low loss, fast switching speeds with low R G I 85A DM Optimized drive voltage (V =15V) GS R 65m DS(ON), typ for broad driver compatibility Q 104nC rr Robust body diode and low Qrr E @ 400V 11 J OSS 100% UIS Tested App... See More ⇒

 8.2. Size:924K  aosemi
 aok065v120x2.pdf pdf_icon

AOK065A60FD

AOK065V120X2 1200 V SiC Silicon Carbide Power MOSFET Features Product Summary Proprietary SiC MOSFET technology V @ T 1200 V DS J, max Low loss, fast switching speeds with low R G I 85 A DM Optimized drive voltage (V = 15 V) GS R 65 m DS(ON), typ for broad driver compatibility Q 155 nC rr Robust body diode and low Qrr E @ 800 V 30 J OSS 100% UI... See More ⇒
