DHS042N15E Datasheet and Replacement


   Type Designator: DHS042N15E
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 375 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id| ⓘ - Maximum Drain Current: 150 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   Qg ⓘ - Total Gate Charge: 124 nC
   tr ⓘ - Rise Time: 106 nS
   Cossⓘ - Output Capacitance: 630 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0057 Ohm
   Package: TO263


 DHS042N15E substitution

   - MOSFET ⓘ Cross-Reference Search



DHS042N15E Datasheet (PDF)

 ..1. Size:964K  cn wxdh
 dhs042n15 dhs042n15e.pdf pdf_icon

DHS042N15E

DHS042N15&DHS042N15E150A 150V N-channel Enhancement Mode Power MOSFET1 DescriptionThis N-channel enhancement mode power MOSFETV = 150VDSSutilizes advanced Split Gate Trench technology, which2 Dprovides excellent Rdson and low Gate charge at the sameR = 5.0mTO-220DS(on) (TYP)time. Which accords with the RoHS standard.G1 R = 4.8mTO-263DS(on) (TYP)3 S

 7.1. Size:792K  cn wxdh
 dhs042n85p.pdf pdf_icon

DHS042N15E

DHS042N85P108A 85V N-channel Enhancement Mode Power MOSFET1 DescriptionThese N-channel enhancement mode power mosfets used2 DV = 85VDSSadvanced splite gate trench technology design, providedexcellent Rdson and low gate charge. Which accords withGR = 4.5mDS(on) (TYP)the RoHS standard.13 SI = 108AD2 Features Fast switching Low on resistance Low g

 9.1. Size:824K  cn wxdh
 dhs044n12 dhs044n12e.pdf pdf_icon

DHS042N15E

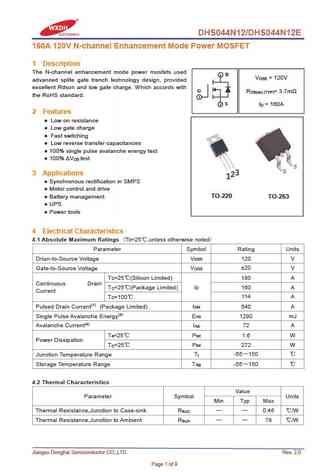

DHS044N12/DHS044N12E160A 120V N-channel Enhancement Mode Power MOSFET1 DescriptionThe N-channel enhancement mode power mosfets used2 DV = 120VDSSadvanced splite gate trench technology design, providedexcellent Rdson and low gate charge. Which accords withGR = 3.7mDS(on) (TYP)the RoHS standard.13 SI = 160AD2 Features Low on resistance Low gate charge

 9.2. Size:819K  cn wxdh
 dhs044n12.pdf pdf_icon

DHS042N15E

DHS044N12160A 120V N-channel Enhancement Mode Power MOSFET1 DescriptionThis N-channel enhancement mode power MOSFET2 DV = 120VDSSutilizes advanced Split Gate Trench technology, whichprovides excellent Rdson and low Gate charge at the sameGR = 3.7mDS(on) (TYP)time. Which accords with the RoHS standard.13 SI = 160AD2 Features Low on resistance Low gat
