DHS065N85 Spec and Replacement


   Type Designator: DHS065N85
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 125 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 85 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 100 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 85.2 nS
   Cossⓘ - Output Capacitance: 535 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0078 Ohm
   Package: TO220

 DHS065N85 Transistor Equivalent Substitute - MOSFET Cross-Reference Search



DHS065N85 Specs

 ..1. Size:1177K  cn wxdh
 dhs065n85 dhs065n85f dhs065n85i dhs065n85e dhs065n85b dhs065n85d.pdf pdf_icon

DHS065N85

DHS065N85/DHS065N85F/DHS065N85I DHS065N85E/DHS065N85B/DHS065N85D 100A 85V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhancement mode power mosfets used 2 D V =85V DSS advanced splite gate trench technology design, provided excellent Rdson and low gate charge. Which accords with G R = 6.5m DS(on) (TYP) the RoHS standard. 1 3 S I = 100A D 2 Features... See More ⇒

 0.1. Size:904K  cn wxdh
 dhs065n85p.pdf pdf_icon

DHS065N85

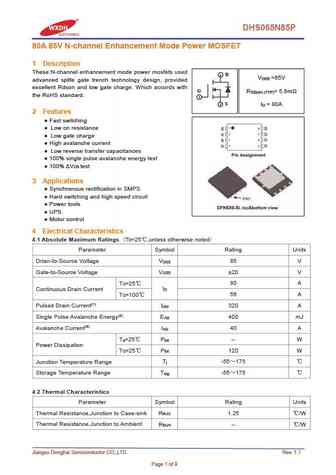

DHS065N85P 80A 85V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhancement mode power mosfets used 2 D V =85V DSS advanced splite gate trench technology design, provided excellent Rdson and low gate charge. Which accords with G R = 5.8m DS(on) (TYP) the RoHS standard. 1 3 S I = 80A D 2 Features Fast switching Low on resistance Low gate... See More ⇒

 7.1. Size:672K  cn wxdh
 dhs065n10p.pdf pdf_icon

DHS065N85

DHS065N10P 80A 100V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhancement mode power mosfets used 2 D V = 100V DSS advanced splite gate trench technology design, provided excellent Rdson and low gate charge. Which accords with G R = 6.5m DS(on) (TYP) the RoHS standard. 1 3 S I = 80A D 2 Features Fast switching Low on resistance Low g... See More ⇒

 7.2. Size:784K  cn wxdh
 dhs065n10.pdf pdf_icon

DHS065N85

DHS065N10 95A 100V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhancement mode power mosfets used 2 D V = 100V DSS advanced splite gate trench technology design, provided excellent Rdson and low gate charge. Which accords with G R = 7.4m DS(on) (TYP) the RoHS standard. 1 3 S I = 95A D 2 Features Fast switching Low on resistance Low ga... See More ⇒

SHOW MORE

Detailed specifications: DHS055N07D , DHS055N07E , DHS055N85 , DHS055N85B , DHS055N85D , DHS055N85E , DHS065N10 , DHS065N10P , IRF740 , DHS065N85B , DHS065N85D , DHS065N85E , DHS065N85F , DHS065N85I , DHS065N85P , DHSJ11N65 , DHSJ13N65 .
