JMSL0303TU Specs and Replacement

Type Designator: JMSL0303TU

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 28 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 88 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 28 nS

Cossⓘ - Output Capacitance: 2164 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0024 Ohm

Package: PDFN3X3-8L

JMSL0303TU substitution

- MOSFET ⓘ Cross-Reference Search



JMSL0303TU datasheet

 ..1. Size:1234K  jiejie micro
 jmsl0303tu.pdf pdf_icon

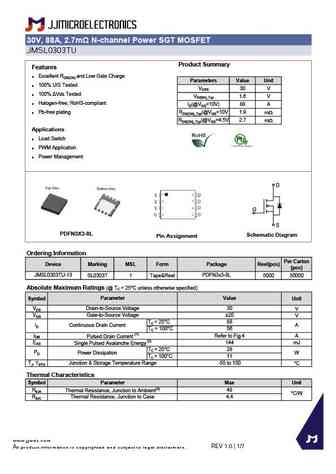

JMSL0303TU

30V, 88A, 2.7m N-channel Power SGT MOSFET JMSL0303TU Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 30 V 100% Vds Tested VGS(th)_Typ 1.6 V Halogen-free; RoHS-compliant ID(@VGS=10V) 88 A Pb-free plating RDS(ON)_Typ(@VGS=10V 1.9 mW RDS(ON)_Typ(@VGS=4.5V 2.7 mW Applications Load Switch PWM Ap... See More ⇒

 5.1. Size:1281K  jiejie micro
 jmsl0303tg.pdf pdf_icon

JMSL0303TU

30V, 162A, 2.5m N-channel Power SGT MOSFET JMSL0303TG Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit VDSS 30 V 100% UIS Tested VGS(th)_Typ 1.6 V 100% Vds Tested ID(@VGS=10V) 162 A Halogen-free; RoHS-compliant RDS(ON)_Typ(@VGS=10V 1.8 mW RDS(ON)_Typ(@VGS=4.5V 2.5 mW Applications Load Switch PWM Application Pow... See More ⇒

 6.1. Size:335K  jiejie micro
 jmsl0303au.pdf pdf_icon

JMSL0303TU

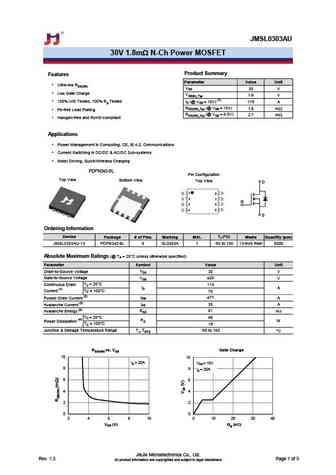

JMSL0303AU 30V 1.8m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 30 V Low Gate Charge VGS(th)_Typ 1.6 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 119 A RDS(ON)_Typ (@ VGS = 10V) 1.8 m Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 4.5V) 2.7 m Halogen-free and RoHS-compliant Applications Powe... See More ⇒

 6.2. Size:297K  jiejie micro
 jmsl0303ag.pdf pdf_icon

JMSL0303TU

JMSL0303AG 30V 1.7m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 30 V Low Gate Charge VGS(th)_Typ 1.6 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 136 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 1.7 m Halogen-free and RoHS-compliant Applications Power Management in Computing, CE, IE 4.0, ... See More ⇒
