JMPF5N50BJ Specs and Replacement
Type Designator: JMPF5N50BJ
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 26 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 500 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 5 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 17 nS
Cossⓘ - Output Capacitance: 67 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.81 Ohm
Package: TO220F
JMPF5N50BJ substitution
- MOSFET ⓘ Cross-Reference Search

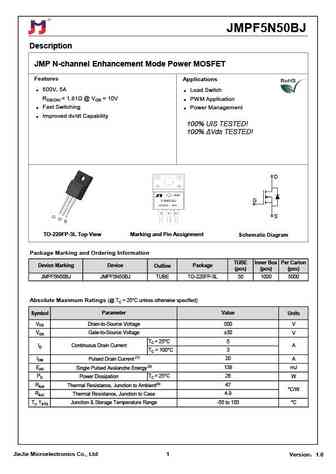

JMPF5N50BJ datasheet
jmpf5n50bj.pdf
JMPF5N50BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 500V, 5A Load Switch RDS(ON) ... See More ⇒
