JMPF7N65BJ Specs and Replacement
Type Designator: JMPF7N65BJ
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 34 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 7 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 29 nS
Cossⓘ - Output Capacitance: 100 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.35 Ohm
Package: TO220F
JMPF7N65BJ substitution
- MOSFET ⓘ Cross-Reference Search

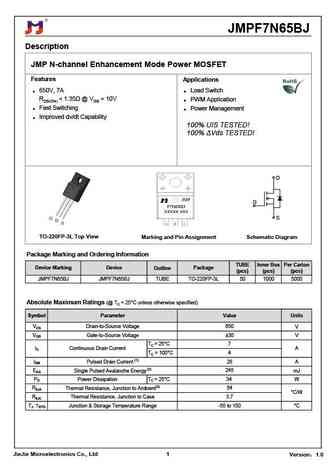

JMPF7N65BJ datasheet
jmpf7n65bj.pdf
JMPF7N65BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 650V, 7A Load Switch RDS(ON) ... See More ⇒
Detailed specifications: JMSL0303TU, JMPF20N60BJ, JMPF20N65BJ, JMPF25N50BJ, JMPF4N60BJ, JMPF4N65BJ, JMPF5N50BJ, JMPF630BJ, STP75NF75, JMPF840BJ, JMPF8N60BJ, JMPL1050AE, JMPL1050AG, JMPL1050AGQ, JMPL1050AK, JMPL1050AKQ, JMPL1050AP
