   Type Designator: JMSH1552PU
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 28 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 14 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 14 nS
   Cossⓘ - Output Capacitance: 77 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.067 Ohm
   Package: PDFN3X3-8L

 JMSH1552PU Transistor Equivalent Substitute - MOSFET Cross-Reference Search



JMSH1552PU Specs

 ..1. Size:1227K  jiejie micro
 jmsh1552pu.pdf pdf_icon

JMSH1552PU

150V, 14A, 51m N-channel Power SGT MOSFET JMSH1552PU Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 150 V 100% Vds Tested VGS(th)_Typ 3.3 V Halogen-free; RoHS-compliant ID(@VGS=10V) 14 A RDS(ON)_Typ(@VGS=10V 51 mW Applications Load Switch PWM Application Power Management D G S PDFN3X... See More ⇒

 5.1. Size:1290K  jiejie micro
 jmsh1552pk.pdf pdf_icon

JMSH1552PU

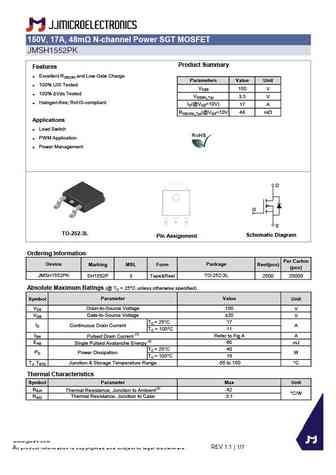

150V, 17A, 48m N-channel Power SGT MOSFET JMSH1552PK Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 150 V 100% Vds Tested VGS(th)_Typ 3.3 V Halogen-free; RoHS-compliant ID(@VGS=10V) 17 A RDS(ON)_Typ(@VGS=10V 48 mW Applications Load Switch PWM Application Power Management D G S TO-252... See More ⇒

 5.2. Size:1245K  jiejie micro
 jmsh1552pp.pdf pdf_icon

JMSH1552PU

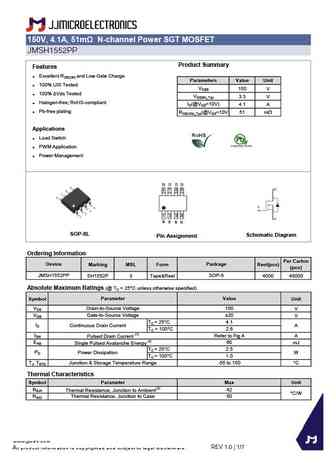

150V, 4.1A, 51m N-channel Power SGT MOSFET JMSH1552PP Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 150 V 100% Vds Tested VGS(th)_Typ 3.3 V Halogen-free; RoHS-compliant ID(@VGS=10V) 4.1 A Pb-free plating RDS(ON)_Typ(@VGS=10V 51 mW Applications Load Switch PWM Application Power Manag... See More ⇒

 5.3. Size:1239K  jiejie micro
 jmsh1552pg.pdf pdf_icon

JMSH1552PU

150V, 25A, 49m N-channel Power SGT MOSFET JMSH1552PG Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 150 V 100% Vds Tested VGS(th)_Typ 3.3 V Halogen-free; RoHS-compliant ID(@VGS=10V) 25 A RDS(ON)_Typ(@VGS=10V 49 mW Applications Load Switch PWM Application Power Management D G S PDFN5X... See More ⇒

SHOW MORE

Detailed specifications: JMSH0805PK , JMSH1552AG , JMSH1552AK , JMSH1552AP , JMSH1552AU , JMSH1552PG , JMSH1552PK , JMSH1552PP , IRF540 , JMSH1565AGS , JMSH1565AKS , JMSH1565AKSQ , JMSH1565APS , JMSH1565AUS , JMSH1566AG , JMSH1566AK , JMSH1566AKQ .
