JMSH1566AKQ Spec and Replacement


   Type Designator: JMSH1566AKQ
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 88 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 22 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 4.2 nS
   Cossⓘ - Output Capacitance: 54 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.072 Ohm
   Package: TO252

 JMSH1566AKQ Transistor Equivalent Substitute - MOSFET Cross-Reference Search



JMSH1566AKQ Specs

 ..1. Size:357K  jiejie micro

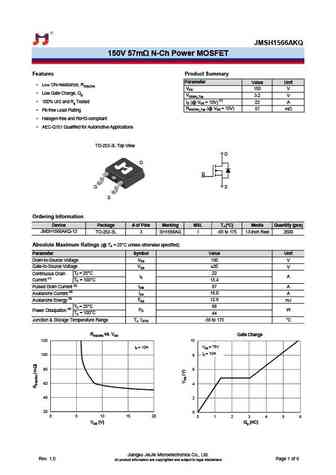

 jmsh1566akq.pdf pdf_icon

JMSH1566AKQ

JMSH1566AKQ 150V 57m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low ON-resistance, RDS(ON) VDS 150 V Low Gate Charge, Qg VGS(th)_Typ 3.2 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 22 A RDS(ON)_Typ (@ VGS = 10V) 57 m Pb-free Lead Plating Halogen-free and RoHS-compliant AEC-Q101 Qualified for Automotive Applications TO-25... See More ⇒

 4.1. Size:354K  jiejie micro

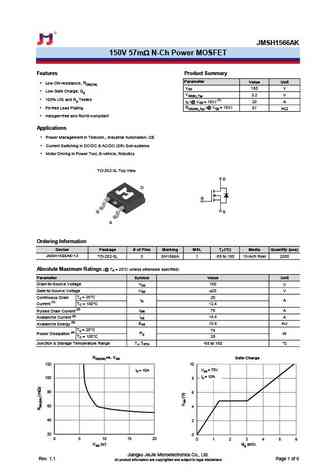

 jmsh1566ak.pdf pdf_icon

JMSH1566AKQ

JMSH1566AK 150V 57m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low ON-resistance, RDS(ON) VDS 150 V Low Gate Charge, Qg VGS(th)_Typ 3.2 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 20 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 57 m Halogen-free and RoHS-compliant Applications Power Management in Telecom., Industrial Au... See More ⇒

 5.1. Size:390K  jiejie micro

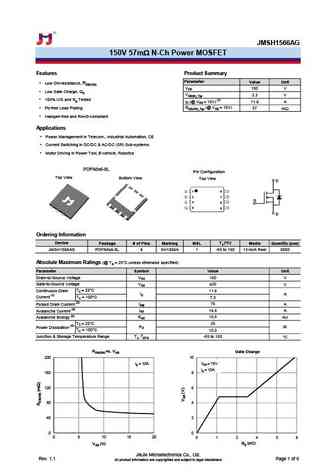

 jmsh1566ag.pdf pdf_icon

JMSH1566AKQ

JMSH1566AG 150V 57m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low ON-resistance, RDS(ON) VDS 150 V Low Gate Charge, Qg VGS(th)_Typ 3.3 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 11.6 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 57 m Halogen-free and RoHS-compliant Applications Power Management in Telecom., Industrial ... See More ⇒

 7.1. Size:310K  jiejie micro
 jmsh1565ags.pdf pdf_icon

JMSH1566AKQ

JMSH1565AGS 150V 52m N-Ch Power MOSFET Product Summary Features Parameter Value Unit Ultra-low RDS(ON) VDS 150 V Low Gate Charge VGS(th)_Typ 3.2 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 18 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 52 m Halogen-free and RoHS-compliant Applications Power Managerment in Telecom., Industrial Automa... See More ⇒

SHOW MORE

Detailed specifications: JMSH1552PU , JMSH1565AGS , JMSH1565AKS , JMSH1565AKSQ , JMSH1565APS , JMSH1565AUS , JMSH1566AG , JMSH1566AK , IRF640N , JBL102E , JBL102T , JBL102Y , JBL111P , JBL112T , JBL113P , JMCL0410AGD , JMCL0410AUD .
