JMSH1004MC Datasheet and Replacement

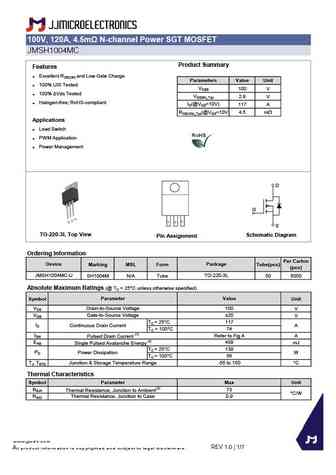

100V, 120A, 4.5m N-channel Power SGT MOSFETJMSH1004MCProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 2.9 V Halogen-free; RoHS-compliantID(@VGS=10V) 117 ARDS(ON)_Typ(@VGS=10V 4.5 mWApplications Load Switch PWM Application Power ManagementDG STO

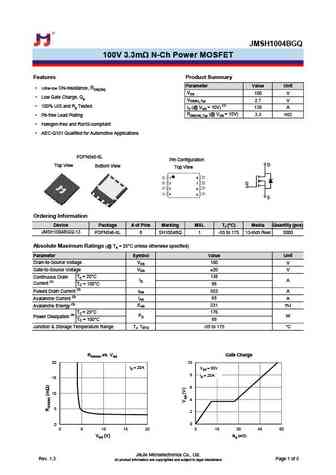

JMSH1004BGQ100V 3.3m N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS100 V Low Gate Charge, Qg VGS(th)_Typ2.7 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 138 A RDS(ON)_Typ (@ VGS = 10V)3.3 m Pb-free Lead Plating Halogen-free and RoHS-compliant AEC-Q101 Qualified for Automotive Application

JMSH1004NG100V 4.0m N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low RDS(ON) VDS100 V Low Gate Charge VGS(th)3.0 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 121 A RDS(ON) (@ VGS = 10V)4.0 m Pb-free Lead Plating Halogen-free and RoHS-compliantApplications Motor Driving in Power Tool, E-vehicle, Robotics

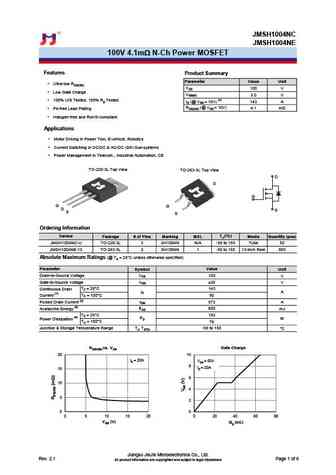

JMSH1004NCJMSH1004NE100V 4.1m N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low RDS(ON) VDS100 V Low Gate Charge VGS(th)3.0 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 143 A RDS(ON) (@ VGS = 10V)4.1 m Pb-free Lead Plating Halogen-free and RoHS-compliantApplications Motor Driving in Power Tool, E-vehicl

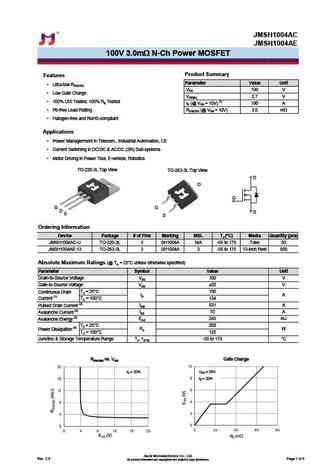

JMSH1004ACJMSH1004AE100V 3.0mW N-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Ultra-low RDS(ON) VDS 100 V Low Gate Charge VGS(th) 2.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 190 A Pb-free Lead Plating RDS(ON) (@ VGS = 10V) 3.0 mW Halogen-free and RoHS-compliantApplications Power Managerment in Telecom., Industrial Aut

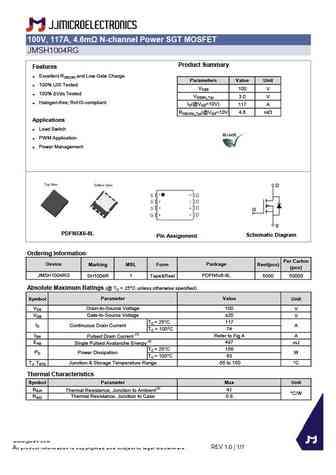

100V, 117A, 4.6m N-channel Power SGT MOSFETJMSH1004RGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 3.0 V Halogen-free; RoHS-compliantID(@VGS=10V) 117 ARDS(ON)_Typ(@VGS=10V 4.6 mWApplications Load Switch PWM Application Power ManagementDG SPD

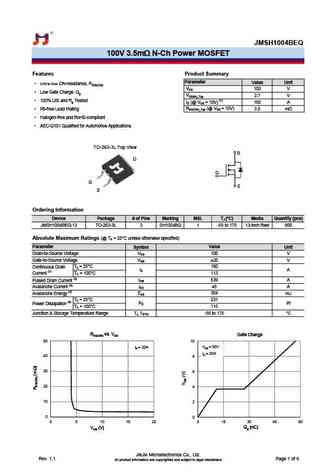

JMSH1004BEQ100V 3.5m N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultralow ON-resistance, RDS(ON) VDS100 V Low Gate Charge, Qg VGS(th)_Typ2.7 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 160 A RDS(ON)_Typ (@ VGS = 10V)3.5 Pb-free Lead Plating m Halogen-free and RoHS-compliant AEC-Q101 Qualified for Automotive Applicati

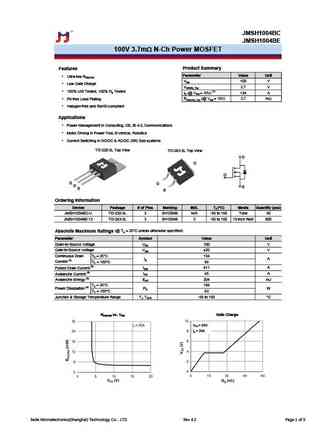

JMSH1004BCJMSH1004BE100V 3.7mW N-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Ultra-low RDS(ON) VDS 100 V Low Gate Charge VGS(th)_Typ 2.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 134 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 3.7 mW Halogen-free and RoHS-compliantApplications Power Management in Computing, CE, IE

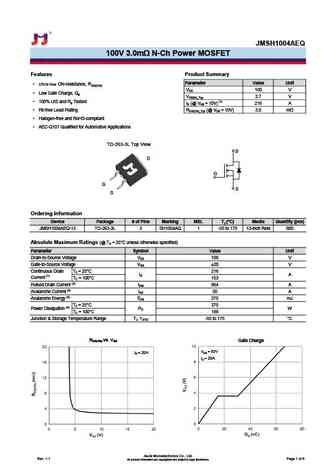

JMSH1004AEQ100V 3.0mW N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS 100 V Low Gate Charge, Qg VGS(th)_Typ 2.7 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 216 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 3.0 mW Halogen-free and RoHS-compliant AEC-Q101 Qualified for Automotive Applications TO-2

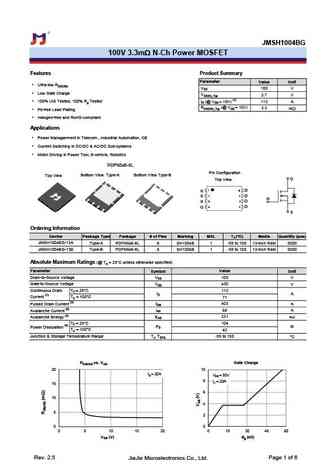

JMSH1004BG100V 3.3mW N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low RDS(ON) VDS100 V Low Gate Charge VGS(th)_Typ2.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 112 A RDS(ON)_Typ (@ VGS = 10V)3.3 mW Pb-free Lead Plating Halogen-free and RoHS-compliantApplications Power Managerment in Telecom., Industrial Auto

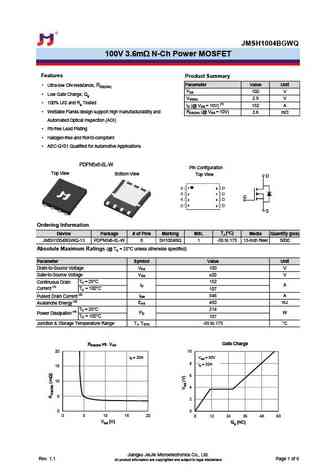

JMSH1004BGWQ100V 3.6m N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS100 V Low Gate Charge, Qg VGS(th)2.9 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 152 A Wettable Flanks design support high manufacturability and RDS(ON) (@ VGS = 10V)3.6 mAutomated Optical Inspection (AOI) Pb-free Lead Plat
