JMSH1006PK Datasheet. Specs and Replacement

Type Designator: JMSH1006PK  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 50 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 61 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 18 nS

Cossⓘ - Output Capacitance: 470 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0076 Ohm

Package: TO252

JMSH1006PK substitution

- MOSFET ⓘ Cross-Reference Search



JMSH1006PK datasheet

 ..1. Size:1290K  jiejie micro
 jmsh1006pk.pdf pdf_icon

JMSH1006PK

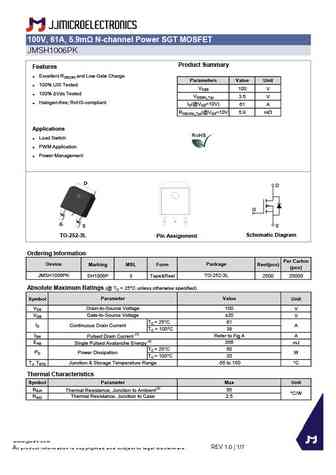

100V, 61A, 5.9m N-channel Power SGT MOSFET JMSH1006PK Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 100 V 100% Vds Tested VGS(th)_Typ 3.5 V Halogen-free; RoHS-compliant ID(@VGS=10V) 61 A RDS(ON)_Typ(@VGS=10V 5.9 mW Applications Load Switch PWM Application Power Management D G S Sche... See More ⇒

 5.1. Size:1206K  jiejie micro
 jmsh1006pg.pdf pdf_icon

JMSH1006PK

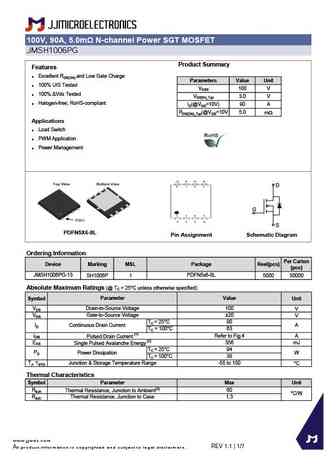

100V, 90A, 5.0m N-channel Power SGT MOSFET JMSH1006PG Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 100 V 100% Vds Tested VGS(th)_Typ 3.0 V Halogen-free; RoHS-compliant ID(@VGS=10V) 90 A RDS(ON)_Typ(@VGS=10V 5.0 mW Applications Load Switch PWM Application Power Management D G S PDFN5... See More ⇒

 5.2. Size:1231K  jiejie micro
 jmsh1006pe.pdf pdf_icon

JMSH1006PK

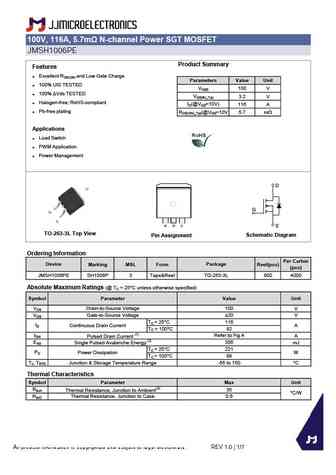

100V, 116A, 5.7m N-channel Power SGT MOSFET JMSH1006PE Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 100 V 100% Vds TESTED VGS(th)_Typ 3.2 V Halogen-free; RoHS-compliant ID(@VGS=10V) 116 A Pb-free plating RDS(ON)_Typ(@VGS=10V 5.7 mW Applications Load Switch PWM Application Power Man... See More ⇒

 5.3. Size:1306K  jiejie micro
 jmsh1006pc.pdf pdf_icon

JMSH1006PK

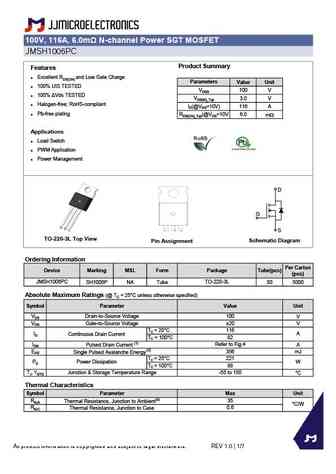

100V, 116A, 6.0m N-channel Power SGT MOSFET JMSH1006PC Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 100 V 100% Vds TESTED VGS(th)_Typ 3.0 V Halogen-free; RoHS-compliant ID(@VGS=10V) 116 A Pb-free plating RDS(ON)_Typ(@VGS=10V 6.0 mW Applications Load Switch PWM Application Power Mana... See More ⇒

SHOW MORE

Detailed specifications: JMSH1006AC, JMSH1006AE, JMSH1006AG, JMSH1006AK, JMSH1006PC, JMSH1006PE, JMSH1006PG, JMSH1006PGS, IRFP260, JMSH1010AC, JMSH1010AE, JMSH1010AG, JMSH1010AGQ, JMSH1010AK, JMSH1010AKQ, JMSH1010PC, JMSH1010PG
