JMSL0402PG Datasheet. Specs and Replacement

Type Designator: JMSL0402PG

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 156 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 233 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 35 nS

Cossⓘ - Output Capacitance: 3354 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0018 Ohm

Package: PDFN5X6-8L

JMSL0402PG substitution

- MOSFET ⓘ Cross-Reference Search



JMSL0402PG datasheet

 ..1. Size:1190K  jiejie micro
 jmsl0402pg.pdf pdf_icon

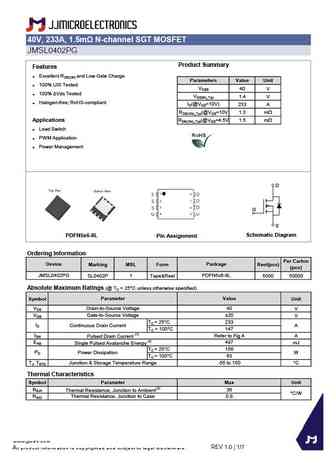

JMSL0402PG

40V, 233A, 1.5m N-channel SGT MOSFET JMSL0402PG Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 40 V 100% Vds Tested VGS(th)_Typ 1.4 V Halogen-free; RoHS-compliant ID(@VGS=10V) 233 A RDS(ON)_Typ(@VGS=10V 1.3 mW Applications RDS(ON)_Typ(@VGS=4.5V 1.5 mW Load Switch PWM Application Power Man... See More ⇒

 5.1. Size:1260K  jiejie micro
 jmsl0402ptl.pdf pdf_icon

JMSL0402PG

40V, 310A, 1.0m N-channel SGT MOSFET JMSL0402PTL Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 40 V 100% Vds Tested VGS(th)_Typ 1.6 V Halogen-free; RoHS-compliant ID(@VGS=10V) 310 A RDS(ON)_Typ(@VGS=10V 0.9 mW Applications RDS(ON)_Typ(@VGS=4.5V 1.0 mW Load Switch PWM Application Power Ma... See More ⇒

 6.1. Size:285K  jiejie micro
 jmsl0402au.pdf pdf_icon

JMSL0402PG

... See More ⇒

 6.2. Size:1192K  jiejie micro

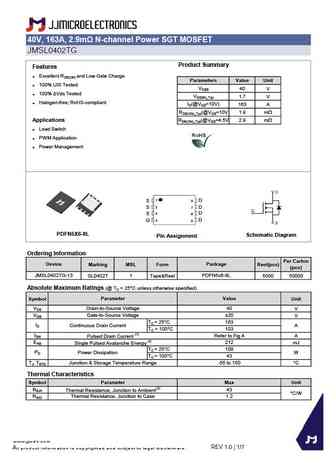

 jmsl0402tg.pdf pdf_icon

JMSL0402PG

40V, 163A, 2.9m N-channel Power SGT MOSFET JMSL0402TG Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 40 V 100% Vds Tested VGS(th)_Typ 1.7 V Halogen-free; RoHS-compliant ID(@VGS=10V) 163 A RDS(ON)_Typ(@VGS=10V 1.9 mW Applications RDS(ON)_Typ(@VGS=4.5V 2.9 mW Load Switch PWM Application Pow... See More ⇒
