JMTV3010A Datasheet. Specs and Replacement

Type Designator: JMTV3010A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 2.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 20 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 131 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0111 Ohm

Package: DFN2020-6L

JMTV3010A substitution

- MOSFET ⓘ Cross-Reference Search



JMTV3010A datasheet

 ..1. Size:426K  jiejie micro
 jmtv3010a.pdf pdf_icon

JMTV3010A

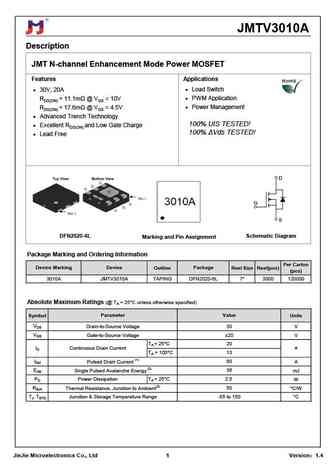

JMTV3010A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 30V, 20A Load Switch RDS(ON) ... See More ⇒

 9.1. Size:454K  jiejie micro
 jmtv3400a.pdf pdf_icon

JMTV3010A

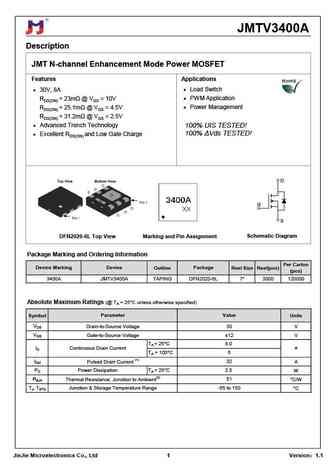

JMTV3400A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 30V, 8A Load Switch RDS(ON) ... See More ⇒
