JMTP520P04A Datasheet. Specs and Replacement

Type Designator: JMTP520P04A

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 2.6 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 5.5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 4.3 nS

Cossⓘ - Output Capacitance: 94 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.051 Ohm

Package: SOP8

JMTP520P04A substitution

- MOSFET ⓘ Cross-Reference Search



JMTP520P04A datasheet

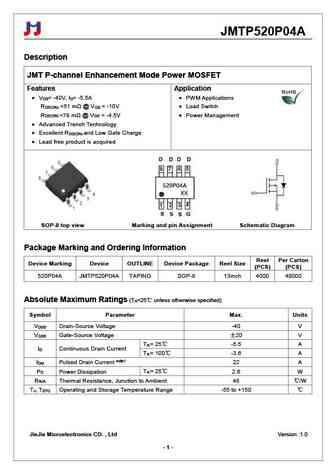

 ..1. Size:414K  jiejie micro
 jmtp520p04a.pdf pdf_icon

JMTP520P04A

JMTP520P04A Description JMT P-channel Enhancement Mode Power MOSFET Features Application V = -40V, I = -5.5A PWM Applications DS D R ... See More ⇒
