JMTP9435A Datasheet. Specs and Replacement

Type Designator: JMTP9435A

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.4 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 5.1 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 2 nS

Cossⓘ - Output Capacitance: 75 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.04 Ohm

Package: SOP8

JMTP9435A substitution

- MOSFET ⓘ Cross-Reference Search



JMTP9435A datasheet

 ..1. Size:689K  jiejie micro
 jmtp9435a.pdf pdf_icon

JMTP9435A

JMTP9435A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -30V, -5.1A Load Switch RDS(ON) ... See More ⇒

 9.1. Size:1005K  jiejie micro
 jmtp9926a.pdf pdf_icon

JMTP9435A

JMTP9926A Description JMT Dual N-channel Enhancement Mode Power MOSFET Features Applications 20V, 6.5A Load Switch RDS(ON) ... See More ⇒

 9.2. Size:1008K  jiejie micro

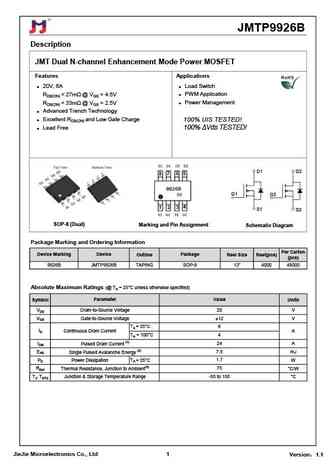

 jmtp9926b.pdf pdf_icon

JMTP9435A

JMTP9926B Description JMT Dual N-channel Enhancement Mode Power MOSFET Features Applications 20V, 6A Load Switch RDS(ON) ... See More ⇒

Detailed specifications: JMTP4407A, JMTP4407B, JMTP440P04A, JMTP4435A, JMTP4953A, JMTP4953B, JMTP520P04A, JMTP850P04A, RU7088R, JMTP9926A, JMTP9926B, JMTJ100N02A, JMTJ11DN10A, JMTJ210P02A, JMTJ2302C, JMTJ2333A, JMTJ250P02A
