JMTJ2333A Datasheet. Specs and Replacement

Type Designator: JMTJ2333A

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 2.9 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 12 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 7 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 17 nS

Cossⓘ - Output Capacitance: 201 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.021 Ohm

Package: SOT23

JMTJ2333A substitution

- MOSFET ⓘ Cross-Reference Search



JMTJ2333A datasheet

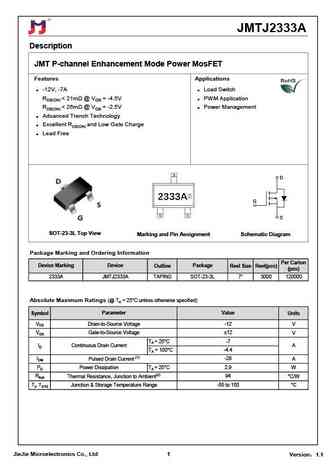

 ..1. Size:984K  jiejie micro
 jmtj2333a.pdf pdf_icon

JMTJ2333A

JMTJ2333A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -12V, -7A Load Switch RDS(ON) ... See More ⇒

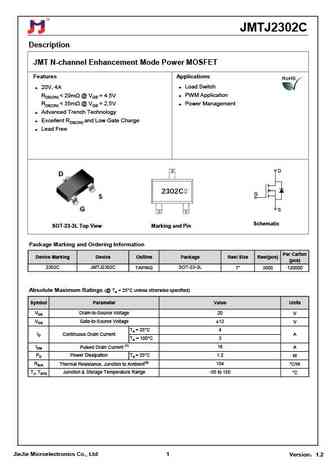

 8.1. Size:986K  jiejie micro
 jmtj2302c.pdf pdf_icon

JMTJ2333A

JMTJ2302C Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 4A Load Switch RDS(ON) ... See More ⇒

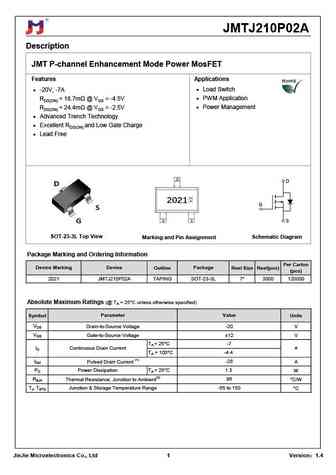

 9.1. Size:460K  jiejie micro
 jmtj210p02a.pdf pdf_icon

JMTJ2333A

JMTJ210P02A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -20V, -7A Load Switch RDS(ON) ... See More ⇒

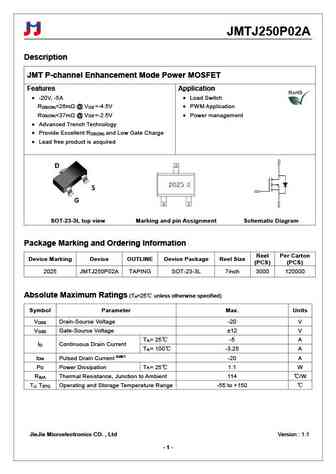

 9.2. Size:378K  jiejie micro
