JMTL2312A Datasheet. Specs and Replacement

Type Designator: JMTL2312A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.3 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 6.8 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 16 nS

Cossⓘ - Output Capacitance: 116 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.021 Ohm

Package: SOT23

JMTL2312A substitution

- MOSFET ⓘ Cross-Reference Search



JMTL2312A datasheet

 ..1. Size:1030K  jiejie micro

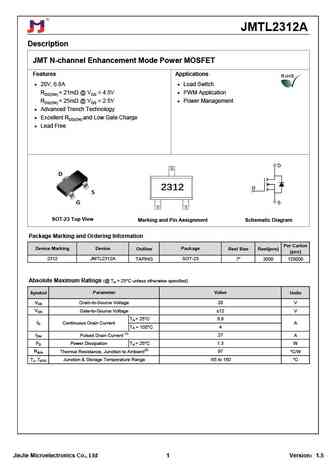

 jmtl2312a.pdf pdf_icon

JMTL2312A

JMTL2312A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 6.8A Load Switch RDS(ON) ... See More ⇒

 6.1. Size:1018K  jiejie micro

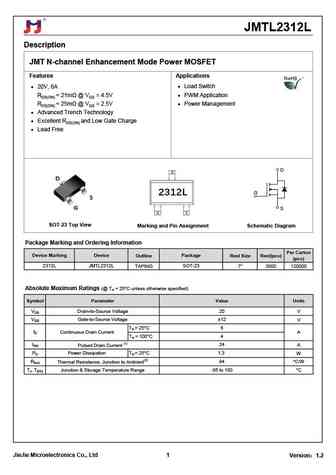

 jmtl2312l.pdf pdf_icon

JMTL2312A

JMTL2312L Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 6A Load Switch RDS(ON) ... See More ⇒

 7.1. Size:324K  jiejie micro
 jmtl2310a.pdf pdf_icon

JMTL2312A

JMTL2310A Description JMT N-channel Enhancement Mode Power MOSFET Features Application 60V, 3A Load Switch R ... See More ⇒

 8.1. Size:956K  jiejie micro

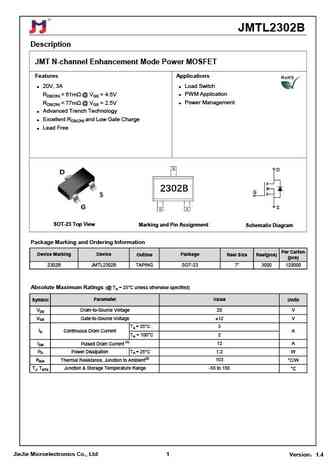

 jmtl2302b.pdf pdf_icon
