JMTC3005A Datasheet. Specs and Replacement

Type Designator: JMTC3005A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 74 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 90 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 302 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.005 Ohm

Package: TO220

JMTC3005A substitution

- MOSFET ⓘ Cross-Reference Search



JMTC3005A datasheet

 ..1. Size:1251K  jiejie micro
 jmtc3005a.pdf pdf_icon

JMTC3005A

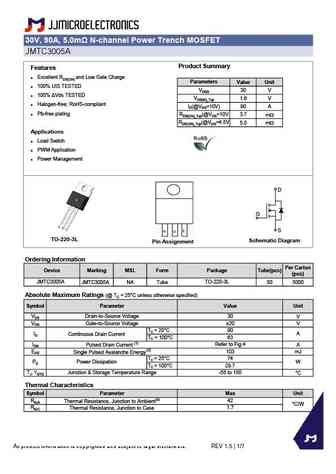

30V, 90A, 5.0m N-channel Power Trench MOSFET JMTC3005A Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 30 V 100% Vds TESTED VGS(th)_Typ 1.6 V Halogen-free; RoHS-compliant ID(@VGS=10V) 90 A Pb-free plating RDS(ON)_Typ(@VGS=10V 3.7 mW RDS(ON)_Typ(@VGS=4.5V 5.0 mW Applications Load Switch PW... See More ⇒

 7.1. Size:435K  jiejie micro
 jmtc3003a.pdf pdf_icon

JMTC3005A

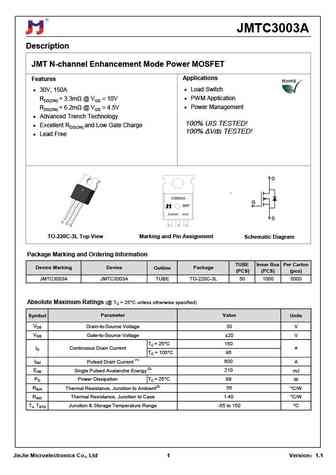

JMTC3003A Description JMT N-channel Enhancement Mode Power MOSFET Applications Features 30V, 150A Load Switch RDS(ON) ... See More ⇒

 7.2. Size:1256K  jiejie micro
 jmtc3002b.pdf pdf_icon

JMTC3005A

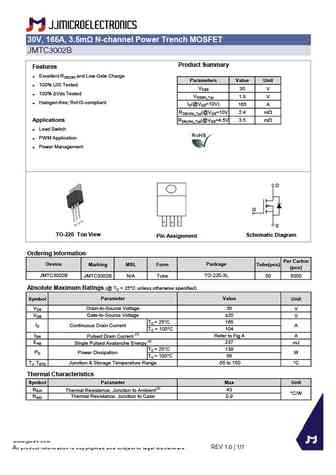

30V, 165A, 3.5m N-channel Power Trench MOSFET JMTC3002B Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 30 V 100% Vds Tested VGS(th)_Typ 1.8 V Halogen-free; RoHS-compliant ID(@VGS=10V) 165 A RDS(ON)_Typ(@VGS=10V 2.4 mW Applications RDS(ON)_Typ(@VGS=4.5V 3.5 mW Load Switch PWM Application P... See More ⇒

 9.1. Size:1250K  jiejie micro
 jmtc320n10a.pdf pdf_icon

JMTC3005A

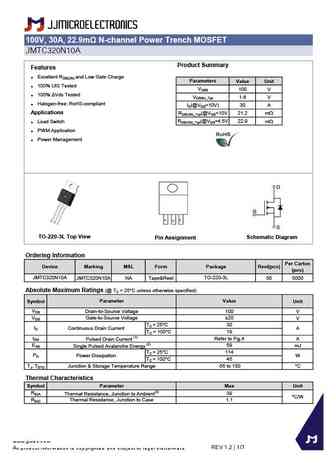

100V, 30A, 22.9m N-channel Power Trench MOSFET JMTC320N10A Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS Tested VDSS 100 V 100% Vds Tested VGS(th)_Typ 1.6 V Halogen-free; RoHS-compliant ID(@VGS=10V) 30 A Applications RDS(ON)_Typ(@VGS=10V 21.2 mW RDS(ON)_Typ(@VGS=4.5V Load Switch 22.9 mW PWM Application ... See More ⇒

SHOW MORE
