JMTC4004A Datasheet. Specs and Replacement

Type Designator: JMTC4004A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 123 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 120 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 16 nS

Cossⓘ - Output Capacitance: 411 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0045 Ohm

Package: TO220

JMTC4004A substitution

- MOSFET ⓘ Cross-Reference Search



JMTC4004A datasheet

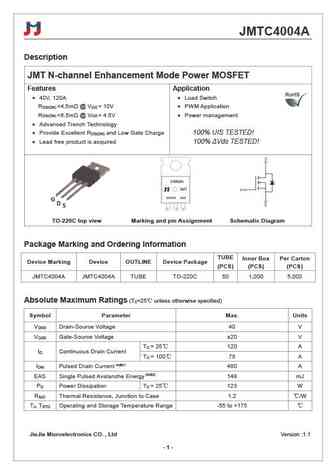

 ..1. Size:321K  jiejie micro
 jmtc4004a.pdf pdf_icon

JMTC4004A

JMTC4004A Description JMT N-channel Enhancement Mode Power MOSFET Features Application 40V, 120A Load Switch R ... See More ⇒
