JMTQ440P04A Datasheet. Specs and Replacement

Type Designator: JMTQ440P04A

Marking Code: Q440P04A

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 30 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 8 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2.5 V

Qg ⓘ - Total Gate Charge: 23 nC

tr ⓘ - Rise Time: 2 nS

Cossⓘ - Output Capacitance: 97 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.036 Ohm

Package: PDFN3X3-8L

JMTQ440P04A substitution

- MOSFET ⓘ Cross-Reference Search



JMTQ440P04A datasheet

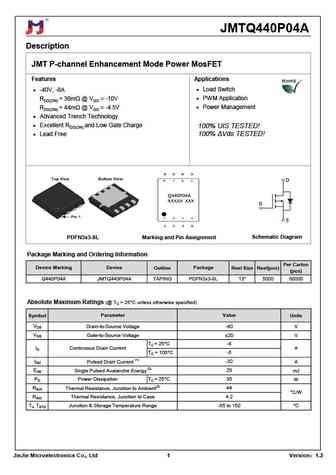

 ..1. Size:578K  jiejie micro
 jmtq440p04a.pdf pdf_icon

JMTQ440P04A

JMTQ440P04A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -40V, -8A Load Switch RDS(ON) ... See More ⇒

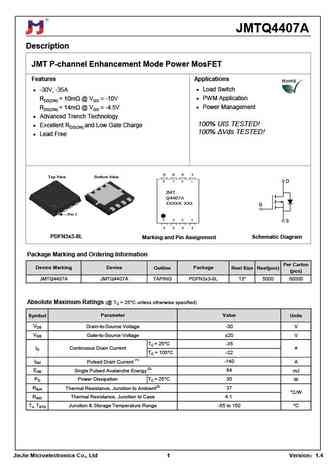

 7.1. Size:528K  jiejie micro
