JMTQ90N02A Datasheet. Specs and Replacement

Type Designator: JMTQ90N02A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 39 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 60 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 528 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0039 Ohm

Package: PDFN3X3-8L

JMTQ90N02A substitution

- MOSFET ⓘ Cross-Reference Search

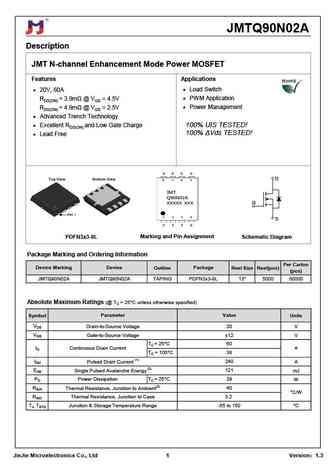

JMTQ90N02A datasheet

 ..1. Size:479K  jiejie micro
 jmtq90n02a.pdf pdf_icon

JMTQ90N02A

JMTQ90N02A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 60A Load Switch RDS(ON) ... See More ⇒
