All MOSFET. JMSL1010PKS Datasheet



JMSL1010PKS Datasheet and Replacement


   Type Designator: JMSL1010PKS
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 46 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 49 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 18 nS
   Cossⓘ - Output Capacitance: 673 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.011 Ohm
   Package: TO252


 JMSL1010PKS substitution

   - MOSFET ⓘ Cross-Reference Search



JMSL1010PKS Datasheet (PDF)

 ..1. Size:1194K  jiejie micro
 jmsl1010pks.pdf pdf_icon

JMSL1010PKS

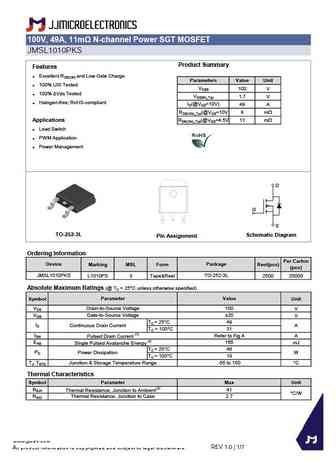

100V, 49A, 11m N-channel Power SGT MOSFETJMSL1010PKSProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 1.7 V Halogen-free; RoHS-compliantID(@VGS=10V) 49 ARDS(ON)_Typ(@VGS=10V 8 mWApplications RDS(ON)_Typ(@VGS=4.5V 11 mW Load Switch PWM Application Power

 4.1. Size:1291K  jiejie micro
 jmsl1010pk.pdf pdf_icon

JMSL1010PKS

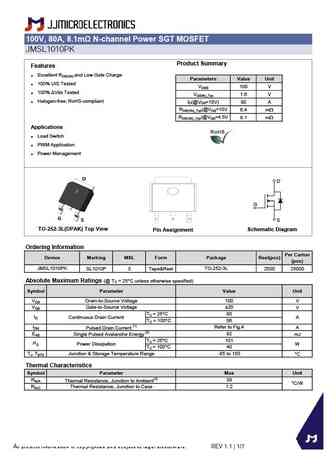

100V, 80A, 8.1m N-channel Power SGT MOSFETJMSL1010PKProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 80 ARDS(ON)_Typ(@VGS=10V 6.4 mWRDS(ON)_Typ(@VGS=4.5V 8.1 mWApplications Load Switch PWM Application Pow

 5.1. Size:523K  jiejie micro
 jmsl1010pe.pdf pdf_icon

JMSL1010PKS

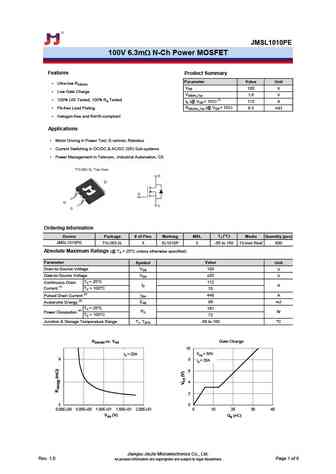

JMSL1010PE100V 6.3mW N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low RDS(ON) VDS100 V Low Gate Charge VGS(th)_Typ1.6 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 112 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 6.3 mW Halogen-free and RoHS-compliantApplications Motor Driving in Power Tool, E-vehicle, Roboti

 5.2. Size:336K  jiejie micro
 jmsl1010pg.pdf pdf_icon

JMSL1010PKS

JMSL1010PG100V 6.4m N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low RDS(ON) VDS100 V Low Gate Charge VGS(th)_Typ2.0 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 74 A RDS(ON)_Typ (@ VGS = 10V)6.4 m Pb-free Lead Plating Halogen-free and RoHS-compliantApplications Motor Driving in Power Tool, E-vehicle, Ro
