JMTD3134K Datasheet. Specs and Replacement

Type Designator: JMTD3134K

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.15 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 10 V

|Id| ⓘ - Maximum Drain Current: 0.75 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 22 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.24 Ohm

Package: DFN1006-3

JMTD3134K substitution

- MOSFET ⓘ Cross-Reference Search

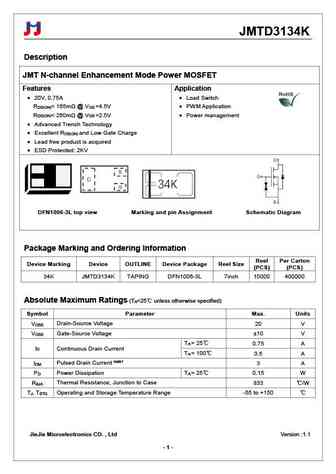

JMTD3134K datasheet

 ..1. Size:314K  jiejie micro
 jmtd3134k.pdf pdf_icon

JMTD3134K

JMTD3134K Description JMT N-channel Enhancement Mode Power MOSFET Features Application 20V, 0.75A Load Switch R ... See More ⇒
