All MOSFET. JMTLB3134K Datasheet



JMTLB3134K Datasheet and Replacement


   Type Designator: JMTLB3134K
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 0.23 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 20 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 10 V
   |Id| ⓘ - Maximum Drain Current: 0.9 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 19 nS
   Cossⓘ - Output Capacitance: 22 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.24 Ohm
   Package: SOT363


 JMTLB3134K substitution

   - MOSFET ⓘ Cross-Reference Search

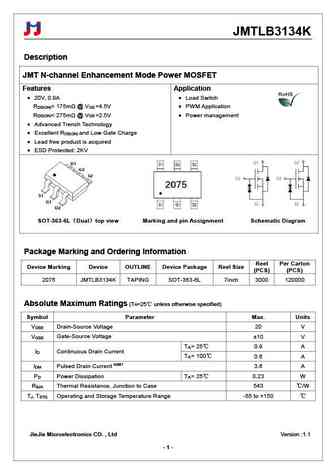

JMTLB3134K Datasheet (PDF)

 ..1. Size:347K  jiejie micro
 jmtlb3134k.pdf pdf_icon

JMTLB3134K

JMTLB3134KDescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Application 20V, 0.9A Load SwitchR

 9.1. Size:327K  jiejie micro
 jmtlb2n7002kds.pdf pdf_icon

JMTLB3134K

JMTLB2N7002KDSDescriptionJMT N-channel MOSFETFeatures Application V =60V, I =0.2A Battery Operated SystemsDS DR
