JMTM8205A Datasheet. Specs and Replacement

Type Designator: JMTM8205A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.8 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 19.5 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 28 nS

Cossⓘ - Output Capacitance: 64 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0241 Ohm

Package: SOT23-6L

JMTM8205A substitution

- MOSFET ⓘ Cross-Reference Search



JMTM8205A datasheet

 ..1. Size:986K  jiejie micro
 jmtm8205a.pdf pdf_icon

JMTM8205A

JMTM8205A Description JMT Dual N-channel Enhancement Mode Power MosFET Features Applicatio l 19.5V, 5A l Load Switch RDS(ON) ... See More ⇒

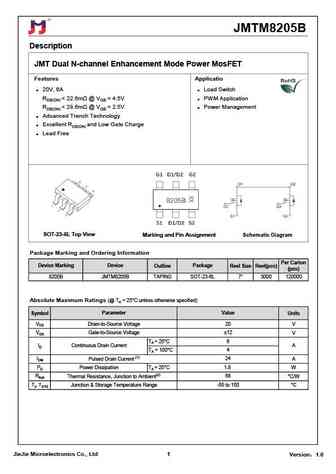

 6.1. Size:975K  jiejie micro
 jmtm8205b.pdf pdf_icon

JMTM8205A

JMTM8205B Description JMT Dual N-channel Enhancement Mode Power MosFET Features Applicatio 20V, 6A Load Switch RDS(ON) ... See More ⇒

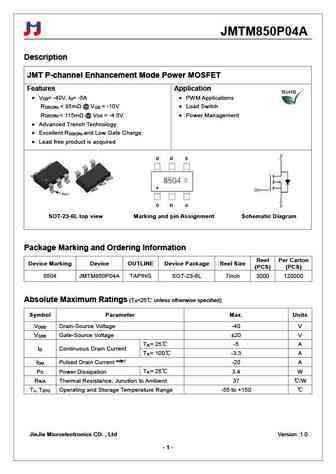

 9.1. Size:477K  jiejie micro
 jmtm850p04a.pdf pdf_icon

JMTM8205A

JMTM850P04A Description JMT P-channel Enhancement Mode Power MOSFET Features Application V = -40V, I = -5A PWM Applications DS D R ... See More ⇒

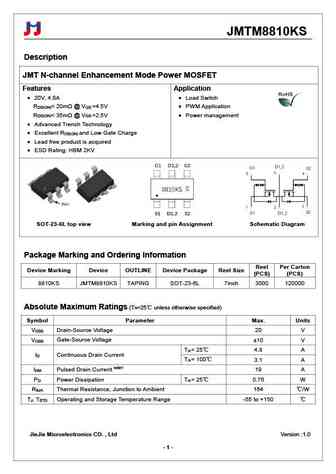

 9.2. Size:331K  jiejie micro
 jmtm8810ks.pdf pdf_icon

JMTM8205A

JMTM8810KS Description JMT N-channel Enhancement Mode Power MOSFET Features Application 20V, 4.8A Load Switch R ... See More ⇒
