All MOSFET. JMTN330N06A Datasheet



JMTN330N06A Datasheet and Replacement


   Type Designator: JMTN330N06A
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 23 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 17 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 15 nS
   Cossⓘ - Output Capacitance: 55 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.036 Ohm
   Package: SOT89


 JMTN330N06A substitution

   - MOSFET ⓘ Cross-Reference Search



JMTN330N06A Datasheet (PDF)

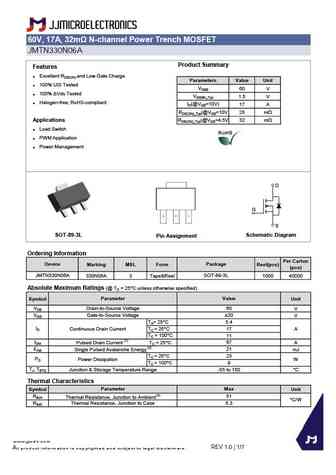

 ..1. Size:1212K  jiejie micro
 jmtn330n06a.pdf pdf_icon

JMTN330N06A

60V, 17A, 32m N-channel Power Trench MOSFETJMTN330N06AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 60 V 100% Vds TestedVGS(th)_Typ 1.5 V Halogen-free; RoHS-compliantID(@VGS=10V) 17 ARDS(ON)_Typ(@VGS=10V 28 mWApplications RDS(ON)_Typ(@VGS=4.5V 32 mW Load Switch PWM Application Powe
