JMTK4006A Datasheet. Specs and Replacement

Type Designator: JMTK4006A  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 60 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 70 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 32 nS

Cossⓘ - Output Capacitance: 213 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0059 Ohm

Package: TO252

  📄📄 Copy

JMTK4006A substitution

- MOSFET ⓘ Cross-Reference Search



JMTK4006A datasheet

 ..1. Size:1229K  jiejie micro
 jmtk4006a.pdf pdf_icon

JMTK4006A

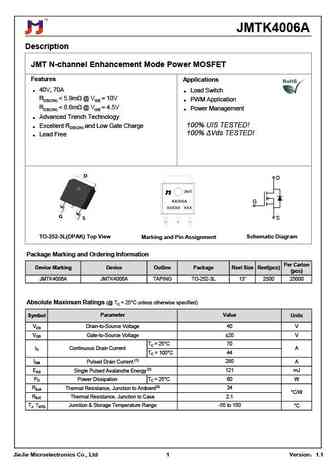

JMTK4006A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 40V, 70A Load Switch RDS(ON) ... See More ⇒

 7.1. Size:881K  jiejie micro
 jmtk4005a.pdf pdf_icon

JMTK4006A

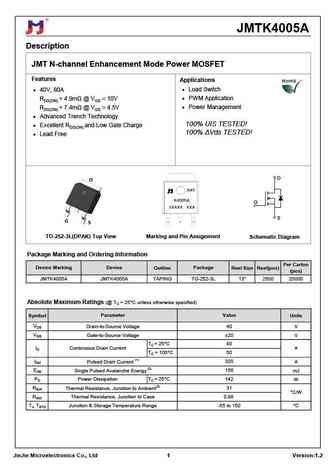

JMTK4005A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 40V, 80A Load Switch RDS(ON) ... See More ⇒

 7.2. Size:568K  jiejie micro
 jmtk4004a.pdf pdf_icon

JMTK4006A

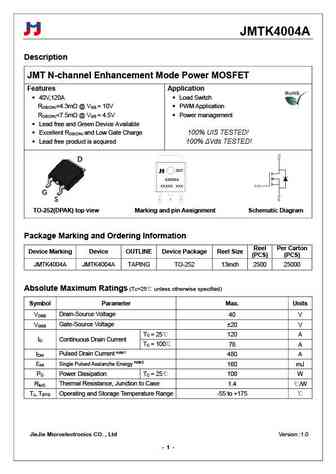

JMTK4004A Description JMT N-channel Enhancement Mode Power MOSFET Features Application 40V,120A Load Switch R ... See More ⇒

 9.1. Size:929K  jiejie micro
 jmtk440p04a.pdf pdf_icon

JMTK4006A

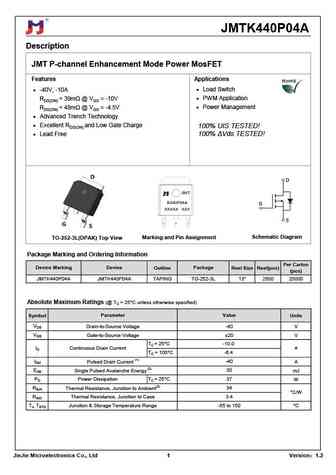

JMTK440P04A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -40V, -10A Load Switch RDS(ON) ... See More ⇒
