JVE103T Specs and Replacement
Type Designator: JVE103T
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 240 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 184 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 31 nS
Cossⓘ - Output Capacitance: 1181 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0039 Ohm
Package: TO263
JVE103T substitution
- MOSFET ⓘ Cross-Reference Search
JVE103T datasheet

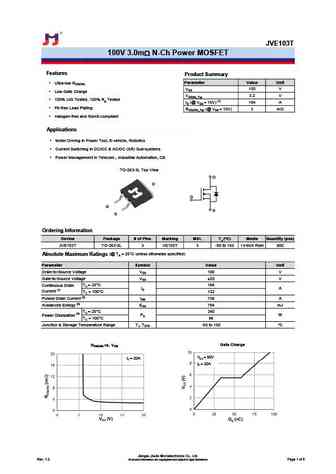

jve103t.pdf
JVE103T 100V 3.0mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) Ultra-low RDS(ON) VDS 100 V Low Gate Charge Low Gate Charge VGS(th)_Typ 3.2 V 100% UIS Tested, 100% Rgg Tested 100% UIS Tested, 100% R Tested ID (@ VGS = 10V) (1) 184 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 3 mW Pb-free Lead Plating ... See More ⇒
jve102t.pdf
JVE102T 100V 2.3mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) Ultra-low RDS(ON) VDS 100 V Low Gate Charge Low Gate Charge VGS(th)_Typ 2.9 V 100% UIS Tested, 100% R 100% UIS Tested, 100% Rgg Tested Tested ID (@ VGS = 10V) (1) 247 A Pb-free Lead Plating Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V) 2.3 mW ... See More ⇒

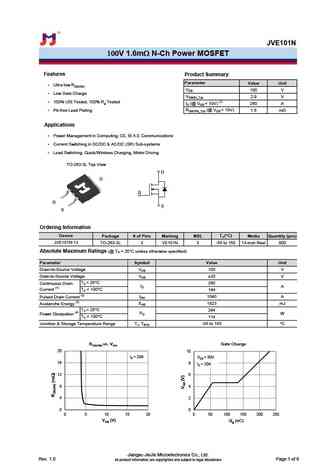

jve101n.pdf
JVE101N 100V 1.6mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) VDS 100 V Low Gate Charge VGS(th)_Typ 2.9 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 260 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 1.6 mW Applications Power Management in Computing, CE, IE 4.0, Communications Current Switching in DC... See More ⇒

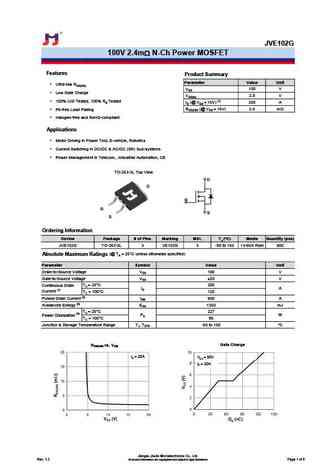

jve102g.pdf
JVE102G 100V 2.4mW N-Ch Power MOSFET Features Product Summary Parameter Value Unit Ultra-low RDS(ON) VDS 100 V Low Gate Charge VGS(th) 2.8 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 200 A RDS(ON) (@ VGS = 10V) 2.4 mW Pb-free Lead Plating Halogen-free and RoHS-compliant Applications Motor Driving in Power Tool, E-vehicle, Robotics Curr... See More ⇒
Detailed specifications: JMSL1040AV, JMSL1040AVQ, JMSL1040AY, JMSL1040PGDQ, JMSL1040PGQ, JVE101N, JVE102G, JVE102T, 10N65, JVL101N, JVL102E, JVL102T, JVL102Y, JMTV3400A, JMTY11DN10A, JMTY2310A, JVC085T
Keywords - JVE103T MOSFET specs
JVE103T cross reference
JVE103T equivalent finder
JVE103T pdf lookup
JVE103T substitution
JVE103T replacement
Step-by-step guide to finding a MOSFET replacement. Cross-reference parts and ensure compatibility for your repair or project.
