JMTY2310A PDF and Equivalents Search



JMTY2310A Specs and Replacement

Type Designator: JMTY2310A

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 4 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 7 nS

Cossⓘ - Output Capacitance: 29 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.1 Ohm

Package: SOT223

JMTY2310A substitution

- MOSFET ⓘ Cross-Reference Search

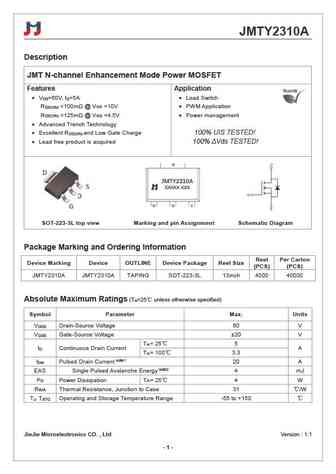

JMTY2310A datasheet

 ..1. Size:325K  jiejie micro
 jmty2310a.pdf pdf_icon

JMTY2310A

JMTY2310A Description JMT N-channel Enhancement Mode Power MOSFET Features Application V =60V, I =5A Load Switch DS D R ... See More ⇒
