All MOSFET. SLA08N10G Datasheet



SLA08N10G Datasheet and Replacement


   Type Designator: SLA08N10G
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 2.4 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 5.9 A
   Tj ⓘ - Maximum Junction Temperature: 155 °C
   tr ⓘ - Rise Time: 3 nS
   Cossⓘ - Output Capacitance: 215 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.036 Ohm
   Package: TDFN2X2


 SLA08N10G substitution

   - MOSFET ⓘ Cross-Reference Search

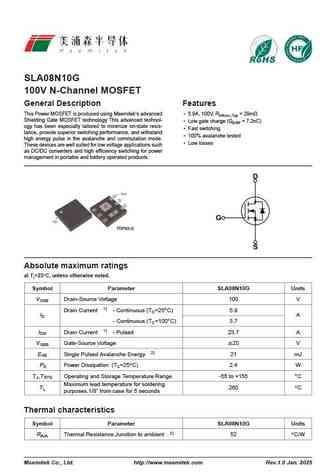

SLA08N10G Datasheet (PDF)

 ..1. Size:2375K  maple semi
 sla08n10g.pdf pdf_icon

SLA08N10G

SLA08N10G100V N-Channel MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Msemiteks advanced 5.9A, 100V, RDS(on),Typ = 29mShielding Gate MOSFET technology This advanced technol- Low gate charge (Qg,typ = 7.2nC)ogy has been especially tailored to minimize on-state resis- Fast switchingtance, provide superior switching performance, and withstand
