   Type Designator: SLT65R180E7C
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 205 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 650 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Id| ⓘ - Maximum Drain Current: 22 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 20 nS
   Cossⓘ - Output Capacitance: 54 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.18 Ohm
   Package: PTO252


 SLT65R180E7C substitution

   - MOSFET ⓘ Cross-Reference Search



SLT65R180E7C Datasheet (PDF)

 ..1. Size:6453K  maple semi
 slt65r180e7c.pdf pdf_icon

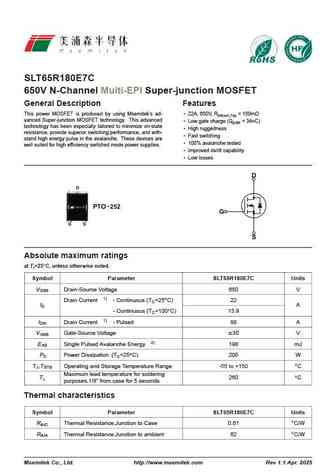

SLT65R180E7C

SLT65R180E7C650V N-Channel Multi-EPI Super-junction MOSFETGeneral Description FeaturesThis power MOSFET is produced by using Msemiteks ad- 22A, 650V, RDS(on),Typ = 150mvanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 34nC)technology has been especially tailored to minimize on-state High ruggednessresistance, provide superior switchi
