SLE65R1K2E7 PDF and Equivalents Search



SLE65R1K2E7 Specs and Replacement

Type Designator: SLE65R1K2E7

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 6.9 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 4.9 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 39 nS

Cossⓘ - Output Capacitance: 14 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.2 Ohm

Package: SOT223

SLE65R1K2E7 substitution

- MOSFET ⓘ Cross-Reference Search

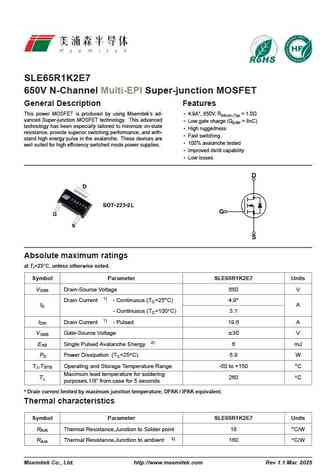

SLE65R1K2E7 datasheet

 ..1. Size:2738K  maple semi
 sle65r1k2e7.pdf pdf_icon

SLE65R1K2E7

SLE65R1K2E7 650V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 4.9A*, 650V, RDS(on),Typ = 1.0 vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 8nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switchin... See More ⇒
