   Type Designator: SLH60R043E7D
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 446 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Id| ⓘ - Maximum Drain Current: 65 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 13 nS
   Cossⓘ - Output Capacitance: 130 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.043 Ohm
   Package: TO247


 SLH60R043E7D substitution

   - MOSFET ⓘ Cross-Reference Search

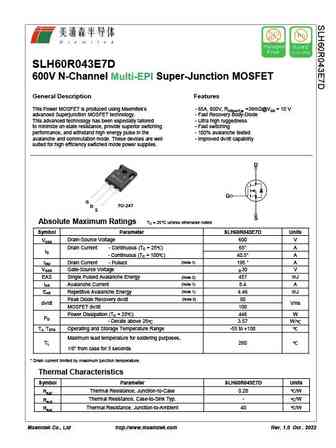

SLH60R043E7D Datasheet (PDF)

 ..1. Size:569K  maple semi
 slh60r043e7d.pdf pdf_icon

SLH60R043E7D

SLH60R043E7D600V N-Channel Multi-EPI Super-Junction MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Msemiteks - 65A, 600V, RDS(on)Typ =36m@VGS = 10 Vadvanced Superjunction MOSFET technology. - Fast Recovery Body-DiodeThis advanced technology has been especially tailored - Ultra high ruggedness to minimize on-state resistance, provide superior switching - F

 7.1. Size:511K  maple semi
 slh60r080ss.pdf pdf_icon

SLH60R043E7D

SLH60R080SS 600V N-Channel MOSFET FeaturesGeneral Description Features - 47A, 600V, RDS(on) typ.= 68m@VGS =10 V This Power MOSFET is produced using Maple semis Advanced Super-Junction technology. - Low gate charge ( typical 88nC) - 7.6A, 500V, RDS(on) typ. = 0.5@VGS = 10 VThis advanced technology has been especially tailored - High ruggedness - Low gate charge ( typic

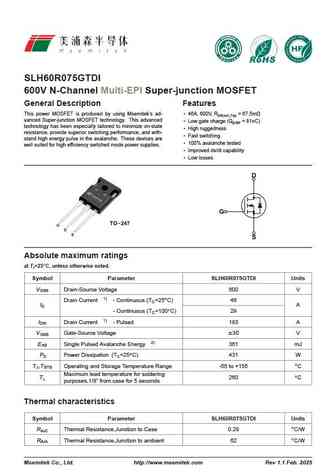

 7.2. Size:6140K  maple semi
 slh60r075gtdi.pdf pdf_icon

SLH60R043E7D

SLH60R075GTDI600V N-Channel Multi-EPI Super-junction MOSFETGeneral Description FeaturesThis power MOSFET is produced by using Msemiteks ad- 46A, 600V, RDS(on),Typ = 67.5mvanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 81nC)technology has been especially tailored to minimize on-state High ruggednessresistance, provide superior switc
