MD50N20 PDF and Equivalents Search



MD50N20 Specs and Replacement

Type Designator: MD50N20

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 250 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 200 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 50 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 65 nS

Cossⓘ - Output Capacitance: 657 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.048 Ohm

Package: TO247

MD50N20 substitution

- MOSFET ⓘ Cross-Reference Search



MD50N20 datasheet

 ..1. Size:656K  cn minos

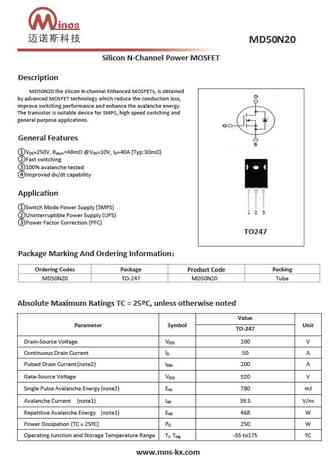

 md50n20.pdf pdf_icon

MD50N20

Silicon N-Channel Power MOSFET Description MD50N20 the silicon N-channel Enhanced MOSFETs, is obtained by advanced MOSFET technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor is suitable device for SMPS, high speed switching and general purpose applications. General Features V =250V, R ... See More ⇒

 9.1. Size:860K  cn vbsemi
 cmd50n06b.pdf pdf_icon

MD50N20

CMD50N06B www.VBsemi.tw N-Channel 60 V (D-S) MOSFET FEATURES PRODUCT SUMMARY 175 C Junction Temperature VDS (V) RDS(on) ( ) ID (A)a TrenchFET Power MOSFET 0.012 at VGS = 10 V 50 Material categorization 60 0.013 at VGS = 4.5 V 45 D TO-252 G S G D S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 C, unless otherwise noted) Parameter Symbol Limit ... See More ⇒

 9.2. Size:302K  cn minos

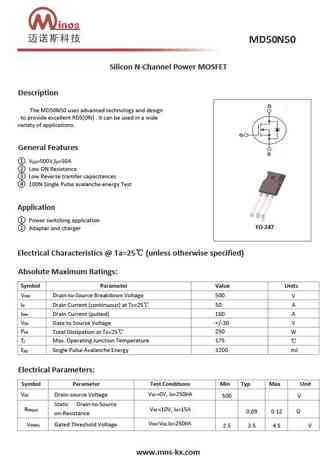

 md50n50.pdf pdf_icon

MD50N20

Silicon N-Channel Power MOSFET Description The MD50N50 uses advanced technology and design to provide excellent RDS(ON) . It can be used in a wide variety of applications. General Features V =500V,I =50A DS D Low ON Resistance Low Reverse transfer capacitances 100% Single Pulse avalanche energy Test Application Power switching application TO-247 Adapter and... See More ⇒
