MD70N10 PDF and Equivalents Search



MD70N10 Specs and Replacement

Type Designator: MD70N10

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 200 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 70 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 28 nS

Cossⓘ - Output Capacitance: 610 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.021 Ohm

Package: TO3PH

MD70N10 substitution

- MOSFET ⓘ Cross-Reference Search

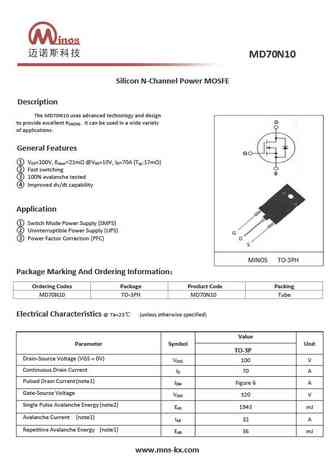

MD70N10 datasheet

 ..1. Size:1158K  cn minos
 md70n10.pdf pdf_icon

MD70N10

Silicon N-Channel Power MOSFE Description The MD70N10 uses advanced technology and design to provide excellent R . It can be used in a wide variety DS(ON) of applications. General Features V =100V, R ... See More ⇒
