MPG120N06P PDF and Equivalents Search



MPG120N06P Specs and Replacement

Type Designator: MPG120N06P

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 143 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 120 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 36 nS

Cossⓘ - Output Capacitance: 345 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.007 Ohm

Package: TO220

MPG120N06P substitution

- MOSFET ⓘ Cross-Reference Search



MPG120N06P datasheet

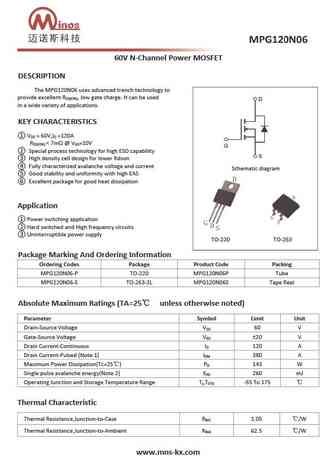

 ..1. Size:929K  cn minos
 mpg120n06p mpg120n06s.pdf pdf_icon

MPG120N06P

60V N-Channel Power MOSFET DESCRIPTION The MPG120N06 uses advanced trench technology to provide excellent R , low gate charge. It can be used DS(ON) in a wide variety of applications. KEY CHARACTERISTICS V = 60V,I =120A DS D R ... See More ⇒
