MPT035N08P PDF and Equivalents Search



MPT035N08P Specs and Replacement

Type Designator: MPT035N08P

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 208.3 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 85 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 120 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 68 nS

Cossⓘ - Output Capacitance: 1181 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.004 Ohm

Package: TO220

MPT035N08P substitution

- MOSFET ⓘ Cross-Reference Search



MPT035N08P datasheet

 ..1. Size:826K  cn minos
 mpt035n08p mpt035n08s.pdf pdf_icon

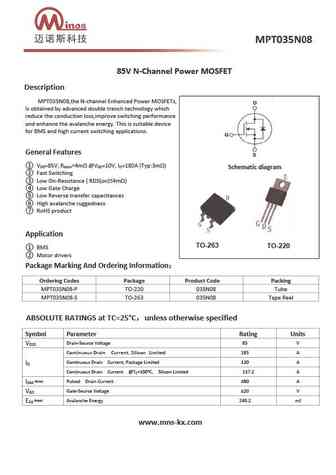

MPT035N08P

85V N-Channel Power MOSFET Description MPT035N08,the N-channel Enhanced Power MOSFETs, Is obtained by advanced double trench technology which reduce the conduction loss,improve switching performance and enhance the avalanche energy. This is suitable device for BMS and high current switching applications. General Features V =85V, R ... See More ⇒

 9.1. Size:848K  cn minos
 mpt037n08p mpt037n08s.pdf pdf_icon

MPT035N08P

... See More ⇒
