MPG100N06S Datasheet. Specs and Replacement

Type Designator: MPG100N06S  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 107 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 100 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 7 nS

Cossⓘ - Output Capacitance: 270 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0075 Ohm

Package: TO263

MPG100N06S substitution

- MOSFET ⓘ Cross-Reference Search



MPG100N06S datasheet

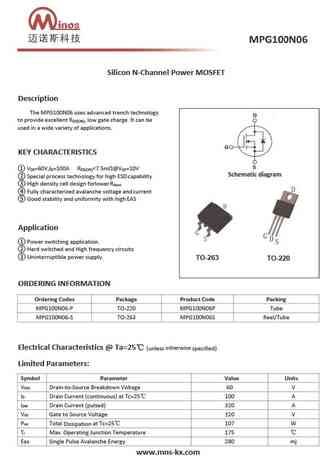

 ..1. Size:967K  cn minos
 mpg100n06p mpg100n06s.pdf pdf_icon

MPG100N06S

Silicon N-Channel Power MOSFET Description The MPG100N06 uses advanced trench technology to provide excellent R , low gate charge. It can be DS(ON) used in a wide variety of applications. KEY CHARACTERISTICS V =60V,I =100A R ... See More ⇒

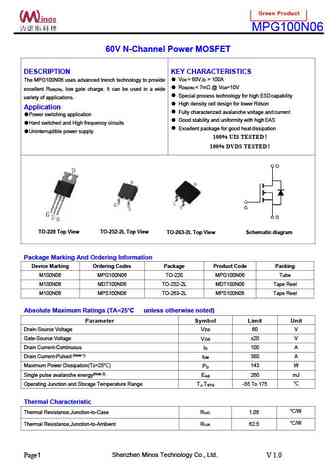

 5.1. Size:222K  cn minos
 mpg100n06 mdt100n06 mps100n06.pdf pdf_icon

MPG100N06S

Green Product MPG100N06 60VN-Channel Power MOSFET DESCRIPTION KEYCHARACTERISTICS V =60V,I =100A DS D The MPG100N06 uses advanced trench technology to provide R ... See More ⇒

 6.1. Size:593K  cn minos
 mpg100n07s mpg100n07p.pdf pdf_icon

MPG100N06S

DESCRIPTION The MPG100N07P uses advanced trench technology to provide excellent R , low gate DS(ON) charge. It can be used in a wide variety of applications. KEY CHARACTERISTICS Schematic diagram V = 70V,I = 100A DS D R ... See More ⇒

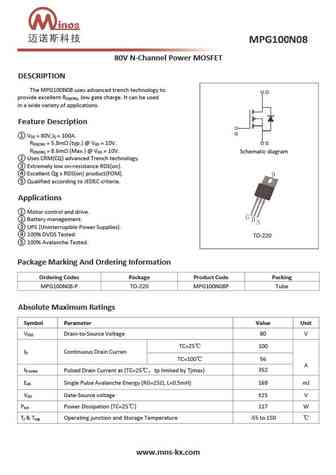

 6.2. Size:809K  cn minos
 mpg100n08p.pdf pdf_icon

MPG100N06S

80V N-Channel Power MOSFET DESCRIPTION The MPG100N08 uses advanced trench technology to provide excellent R , low gate charge. It can be used DS(ON) in a wide variety of applications. Feature Description V = 80V,I = 100A. DS D R = 5.8m (typ.) @ V = 10V. DS(ON) GS R = 8.6m (Max.) @ V = 10V. DS(ON) GS Schematic diagram Uses CRM(CQ) advanced Trench technology. Extreme... See More ⇒
