AP190N15P Specs and Replacement
Type Designator: AP190N15P
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 210 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 190 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 115 nS
Cossⓘ - Output Capacitance: 412 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0075 Ohm
Package: TO220
AP190N15P substitution
- MOSFET ⓘ Cross-Reference Search
AP190N15P datasheet

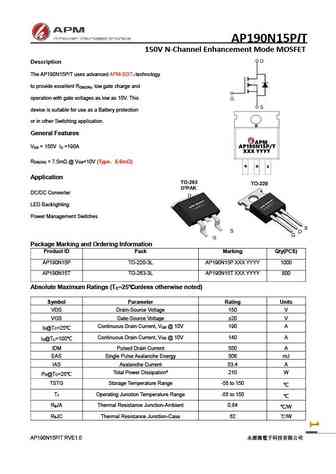

ap190n15p ap190n15t.pdf
AP190N15PIT 150V N-Channel Enhancement Mode MOSFET Description The AP190N15P/T uses advanced APM-SGT technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 150V I =190A DS D R ... See More ⇒
Detailed specifications: AP160N10P , AP160N10T , AP180N03P , AP180N03T , AP180N08P , AP180N08T , AP18N20D , AP18N20Y , IRFP064N , AP190N15T , AP200N12P , AP200N12T , AP20N65F , AP20N65P , AP30N06P , AP30N06T , AP40N20P .
History: AP18N20D
