DMN3404L Specs and Replacement

Type Designator: DMN3404L

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.78 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 4.3 A

Electrical Characteristics

Cossⓘ - Output Capacitance: 386 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.042 Ohm

Package: SOT23

DMN3404L substitution

- MOSFET ⓘ Cross-Reference Search



DMN3404L datasheet

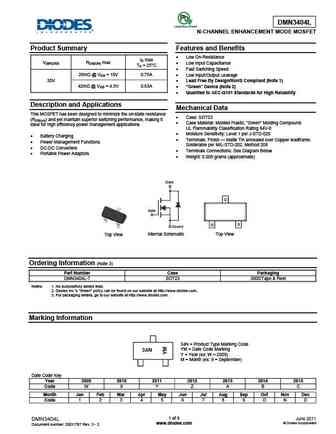

 ..1. Size:145K  diodes
 dmn3404l.pdf pdf_icon

DMN3404L

DMN3404L N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features and Benefits Low On-Resistance ID max V(BR)DSS RDS(ON) max Low Input Capacitance TA = 25 C Fast Switching Speed 28m @ VGS = 10V 0.75A Low Input/Output Leakage 30V Lead Free By Design/RoHS Compliant (Note 1) 42m @ VGS = 4.5V 0.63A "Green" Device (Note 2) Qualified to A... See More ⇒

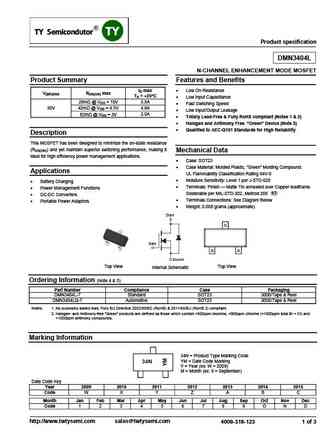

 ..2. Size:179K  tysemi
 dmn3404l.pdf pdf_icon

DMN3404L

Product specification DMN3404L N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features and Benefits ID max Low On-Resistance V(BR)DSS RDS(ON) max TA = +25 C Low Input Capacitance 28m @ VGS = 10V 5.8A Fast Switching Speed 30V 42m @ VGS = 4.5V 4.8A Low Input/Output Leakage 82m @ VGS = 3V 2.0A Totally Lead-Free & Fully RoHS compliant (Notes ... See More ⇒
