   Type Designator: AP50N06T
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 74 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 50 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 50 nS
   Cossⓘ - Output Capacitance: 145 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm
   Package: TO263


 AP50N06T substitution

   - MOSFET ⓘ Cross-Reference Search



AP50N06T Datasheet (PDF)

 ..1. Size:824K  cn apm
 ap50n06p ap50n06t.pdf pdf_icon

AP50N06T

AP50N06PIT 60V N-Channel Enhancement Mode MOSFET Description The AP50N06P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS DR

 7.1. Size:2440K  cn apm
 ap50n06nf.pdf pdf_icon

AP50N06T

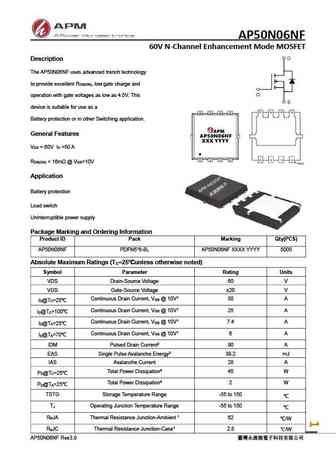

AP50N06NF 60V N-Channel Enhancement Mode MOSFET Description The AP50N06NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS DR

 7.2. Size:1589K  cn apm
 ap50n06bd ap50n06by.pdf pdf_icon

AP50N06T

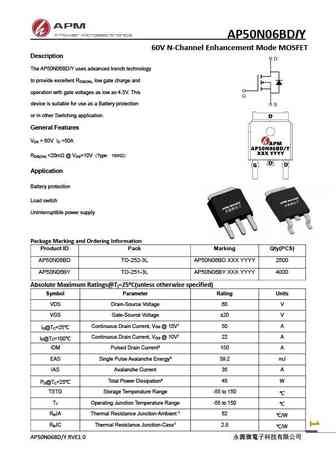

AP50N06BDIY 60V N-Channel Enhancement Mode MOSFET Description The AP50N06BD/Y uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50A DS DR

 7.3. Size:2272K  cn apm
 ap50n06d.pdf pdf_icon

AP50N06T

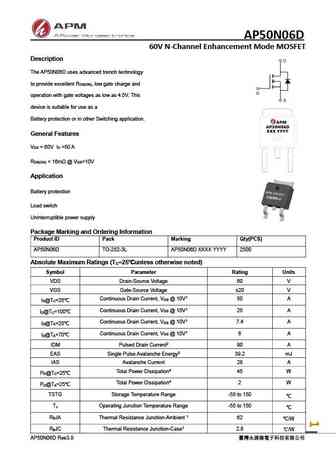

AP50N06D 60V N-Channel Enhancement Mode MOSFET Description The AP50N06D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS DR
