AP90N06P MOSFET Datasheet: N-Ch, 60V, 90A. Full specification with pinout and replacement list

AP90N06P Specs and Replacement

Type Designator: AP90N06P

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 108 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 90 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 7 nS

Cossⓘ - Output Capacitance: 286 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.007 Ohm

Package: TO220

AP90N06P substitution

- MOSFET ⓘ Cross-Reference Search

AP90N06P datasheet

..1. Size:1413K cn apm
ap90n06p ap90n06t.pdf pdf_icon

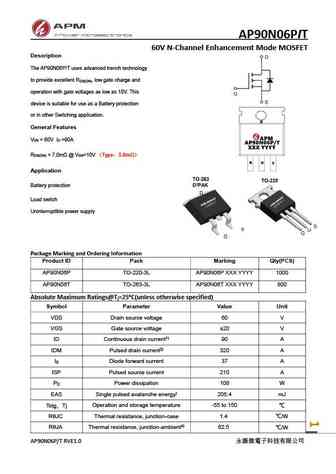

AP90N06PIT 60V N-Channel Enhancement Mode MOSFET Description The AP90N06P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =90A DS D R ... See More ⇒

7.1. Size:2408K cn apm
ap90n06d.pdf pdf_icon

AP90N06D 60V N-Channel Enhancement Mode MOSFET Description The AP90N06D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =90A DS D R ... See More ⇒

7.2. Size:1327K cn apm
ap90n06f.pdf pdf_icon

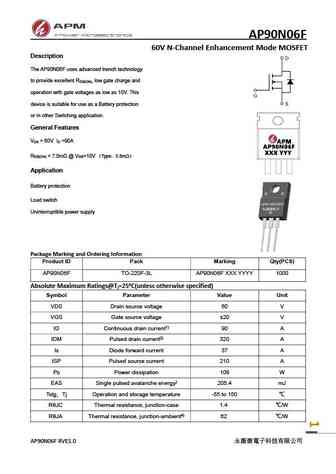

AP90N06F 60V N-Channel Enhancement Mode MOSFET Description The AP90N06F uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =90A DS D R ... See More ⇒
